Addressable RGB Case

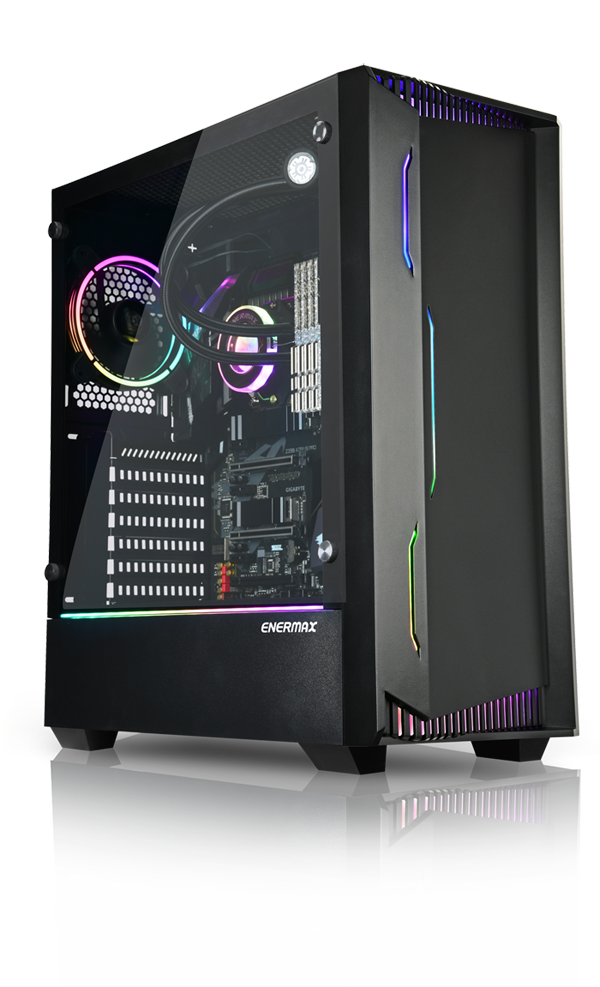

The LIBLLUSION LL30 RGB Gaming Tower comes with an illuminated front panel with addressable RGB LEDs, one pre-installed addressable SquA RGB fan and an RGB LED side stripe. The tempered glass panorama side window provides a clear view of the installed components, making it ideal for builds with RGB lighting. LIBLLUSION LL30’s integrated RGB hub controls up to 6x addressable RGB devices or synchronizes with supported motherboard software. A detachable PSU side cover and a removable HDD cage ensure an easy installation and cable management. LIBLLUSION LL30 offers broad support for liquid coolers in sizes 360, 280, 240, 140 and 120 mm.
| ECA-LL30-M1BB-ARGB | |
| General | |
| Color | Black |
| Material | 0.6mm SPCC, 4mm tempered glass (side panel) |
| Dimensions | 424 x 205 x 480mm |
| RGB Control Hub | |
| LED Hub Connector |  6x 3 pin ARGB (5V/Data/-/GND) (4x used by preinstalled fans) |
| RGB Hub Power Connector |  SATA Power |
| RGB Sync. Connector | 3 pin ARGB (5V/Data/-/GND) |
| RGB Sync. Compatibility | Asus, Asrock, MSI and Gigabyte |
| RGB Hub Max. Current | 5A (1,64A used by preinstalled RGB devices) |
| LED Stripes | |
| LED Type | WS2812B addressable RGB |
| Rated Voltage LED | 5V |
| Rated Current LED | 0.48A |
| SquA RGB Fan | |
| LED Type | WS2812B addressable RGB |
| Rated Voltage LED | 5V |
| Rated Current LED | 0.68A |
| Rated Current Fans | 0.21A |
| Fan Power Connector |  4 pin Molex |
| Fan Slots | |
| Front | 2 x 140mm or 3x 120mm (1 x 120mm fan preinstalled) |
| Top | 2 x 140/ 2 x 120mm |
| Rear | 1 x 120mm (1 x 120mm SquA RGB fan preinstalled) |
| Side | – |
| Liquid Cooling | |
| Front | 240/ 280/ 360mm radiator |
| Top | 240/ 280mm radiator |
| Rear | 120mm radiator |
| Side | – |
| Installation Slots | |
| Front | – |
| Side | – |
| Motherboard Tray | 3 x 2,5″ HDD/ SSD |
| Bottom Drive Bays | 2 x 2,5″/ 3.5″ HDD/ SSD |
| Expansion Slots | 7 x |
| I/O Panel |
2x USB-A (USB 3.2 Gen 1×1)*, HD Audio, LED control
|
| Maximum Compatibility | |
| Graphics Card Length | 375mm |
| CPU Cooler Height | 157mm |
| Maximum PSU Size | 160mm |
| Motherboards | ATX, micro ATX, mini ITX |
*USB 3.2 Gen 2×1 = USB 3.1 Gen 2
USB 3.2 Gen 1×1 = USB 3.1 Gen 1 = USB 3.0
| Dealer Information | |
|---|---|
| ECA-LL30-M1BB-ARGB | |
| Product Dimensions | 424 x 205 x 480mm |
| Product Weight | 5.69kg |
| Product Box Dimensions | 520 x 250 x 485mm |
| Product Box Gross Weight | 6.53kg |
| EAN-Code | 4713157724298 |
By loading the video, you agree to YouTube's privacy policy.
Learn more
By loading the video, you agree to YouTube's privacy policy.
Learn more
By loading the video, you agree to YouTube's privacy policy.
Learn more
By loading the video, you agree to YouTube's privacy policy.
Learn more
| Datasheet EN – LIBLLUSION LL30 |  |
| Manual – LIBLLUSION LL30 | |
| Product Pictures – LIBLLUSION LL30 |  |
LIBLLUSION LL30 comes with embedded LED strip on the left side, a SquA RGB fan and an addressable RGB LED design front panel to create colourful rainbow effects with 16.8 million colours.
ENERMAX SquA RGB fans support addressable RGB technology for a unique RGB lighting experience. The fan is equipped with a Vortex Frame Design that can generate a centred, strong air pressure that is optimized for radiators.
SquA RGB’s frame is equipped with rubber damping pads to prevent vibration transfer to the chassis.
The integrated RGB hub controls up to 6x addressable RGB devices and changes between 13 pre-set lighting effects: Rainbow, Snake, Peach & Green scroll, Colors breathe, Colors scroll, Bilateral colours scroll, Red, Green, Blue, White, Yellow, Azure, and Peach.
The hub supports RGB sync with compatible motherboards from ASUS, ASRock, MSI and Gigabyte via addressable RGB headers.
Razer Chroma support with compatible motherboards of Asrock and MSI.
(Pressing the reset/lighting control button for 3 seconds switches to M/B control.)
A panorama window built from 4mm tempered glass offers a wide view of your hardware.
LIBLLUSION LL30 offers an extensive cooling potential for up to 6 fans. 3 in the front, 2 on top and 1 at the back.
The flexible cooling system configuration supports 3x designated areas for liquid cooler installation supporting radiators of 360, 280, 240, 140 and 120 mm.
The removable HDD cage creates flexible space for PSU cable management and allows the installation of 2x 2,5″/3,5″ SSD/HDDs. 3 more 2,5″ SSD/HDDs can be installed behind the mainboard tray.
The PSU-Tunnel design with detachable PSU side cover not only provides quick and easy installation but also hides cables for a clean look and better airflow.
