WHITE

Addressable RGB Fan

The HF120 ARGB White addressable RGB fan is equipped with hub LED lighting powered by ENERMAX LED LIGHTING Technology, which provides incredibly bright and even lighting. The addressable RGB LEDs can create colourful rainbow effects and allow synchronization with supported motherboard software. HF120 ARGB White is designed for silent operation without compromising performance. Since a hub LED design does not require space for an LED frame, full-size fan blades can be used, providing better airflow compared to shorter fan blades. A starting speed of 500 rpm and rubber pads to reduce vibration ensure quiet operation. The dual-convex blade design is engeneered to provide a strong air flow. Together with the PWM speed control the HF120 ARGB White is suitable for radiators of CPU coolers.

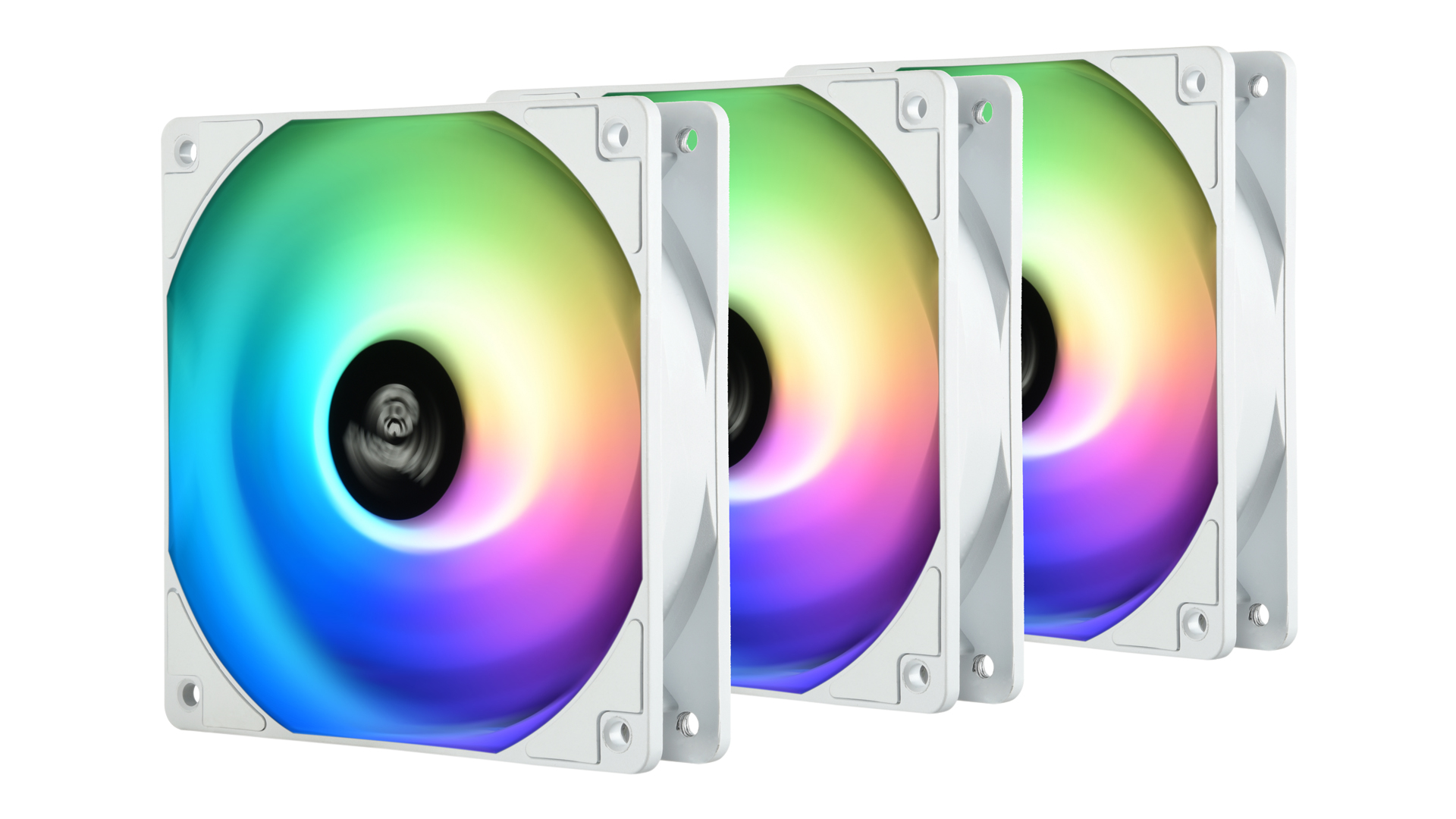

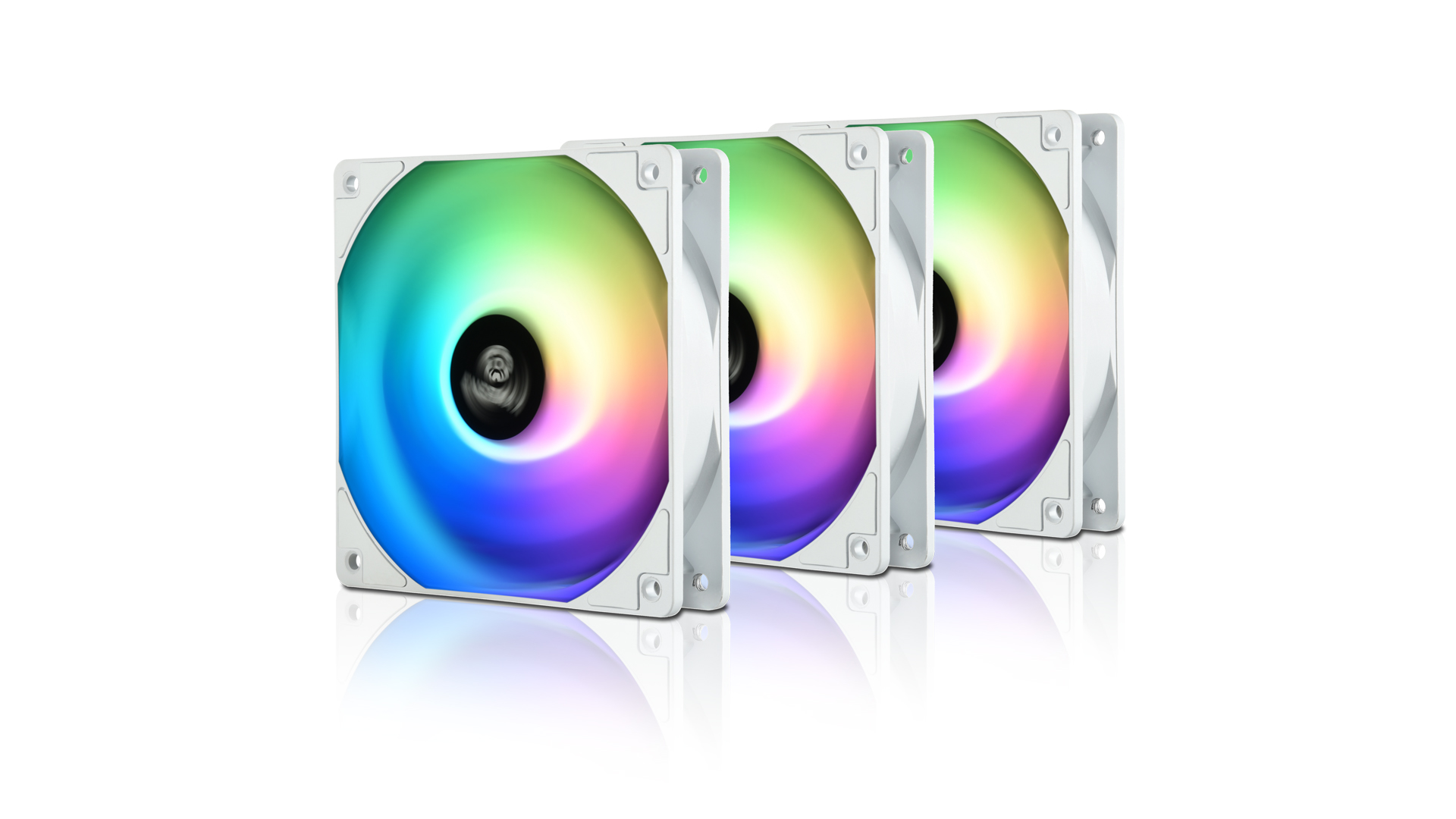

3 Fan Pack | UCHF12PARGB-W-BP3
SQUARGB White

Technical Specifications

Overview
UCHF12PARGB-W-BP3
Fan
Fan Quantity 3x
Bearing Type

MTBF 50,000h @25°C
Number of Blades 9
Fan Dimensions
120 x 120 x 25mm
Fan Speed
500 – 1,600RPM
Fan Control
PWM
LED Type
WS2812B addressable RGB
Rated Voltage Fan
12V
Rated Current Fan
0.17 A
Rated Voltage Fan 5V
Rated Current LED 0.36 A
Total Current LED
1.08 A
Fan Power Connector 4 pin PWM (GND/12V/Tacho/PWM)
Noise Level
14 – 27dB(A)
Air Flow 38.2 – 122,42m3/h
Air Flow 22.5 – 72,1CFM
Static Pressure 0.2 – 1.98mm-H2O
RGB Controller
RGB Sync. Connector 3 pin ARGB (5V/Data/-/GND)
RGB Sync. Compatibility Asus, Asrock, MSI, Gigabyte, Razer Chroma (with Asrock and MSI mainboards)
Lighting Modes Racing-Rainbow (Default), Breathing-Rainbow, Flash-Rainbow, Overlaying-Rainbow, Flow-Rainbow, Colors auto-run (8 colors), Ripple auto-run (8 colors), Overlaying-RED, Overlaying-GREEN, Overlaying-BLUE
Power Connector SATA Power
Max. Current Controller 3 A
Included in the delivery
3 x HF120 White fan, 12 x screws, RGB control box, cable ties, magnetic adhesive, molex to 4 Pin power cable, SATA power cable, aRGB 3 to 1 cable (5V/D/-/G) , GIGABYTE aRGB adapter, PWM 3 to 1 cable



Dealer Information
UCHF12PARGB-W-BP3
Product Dimensions 120 x 120 x 25mm
Product Weight
Product Box Dimensions 133 x 160 x 100mm
Product Box Gross Weight 0.74kg
Master Carton Dimensions 520 x 340 x 290mm
Master Carton Gross Weight 14.8kg
Master Carton Pieces 20
EAN-Code 4713157726100

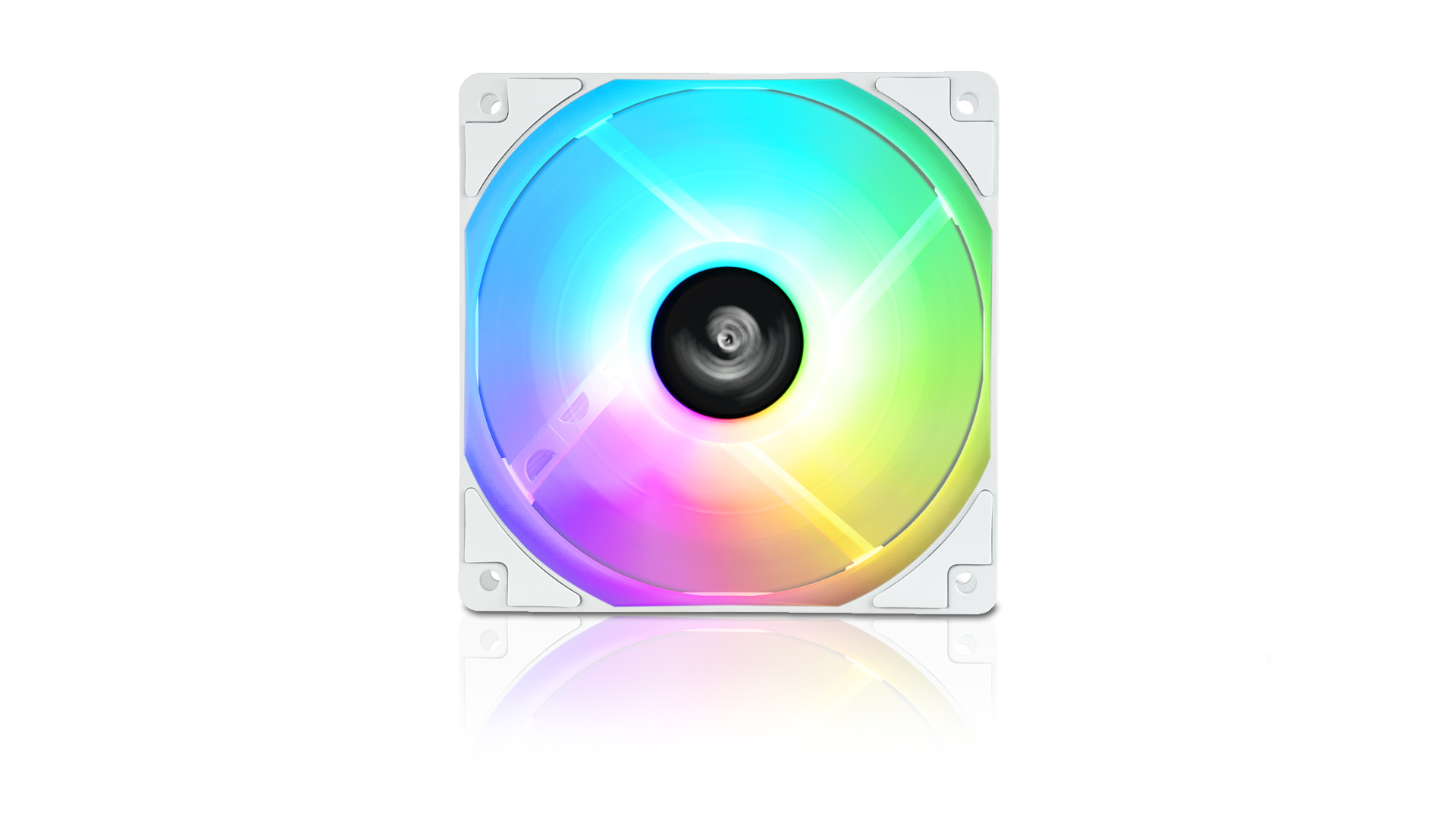

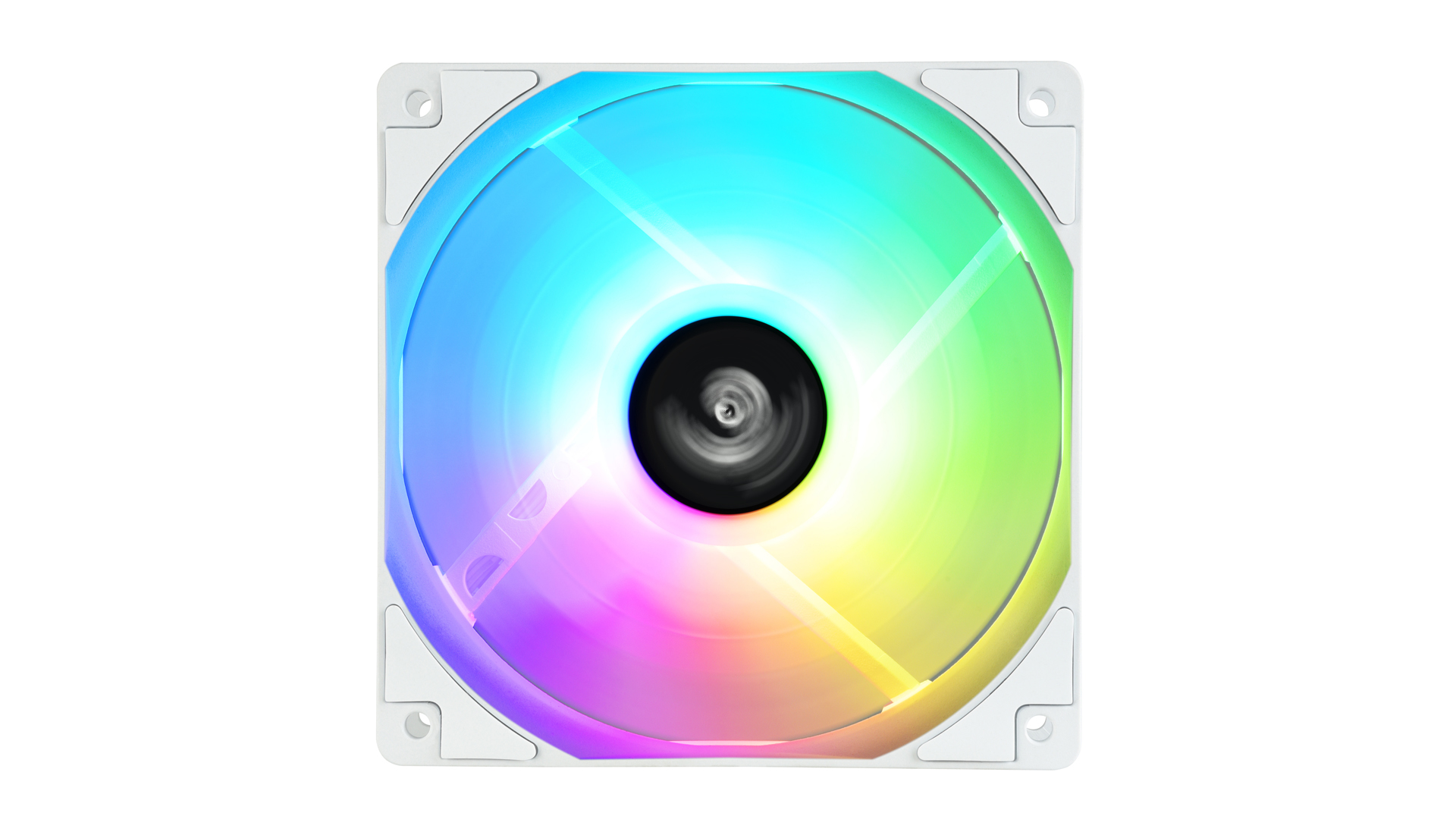

Addressable RGB LED Lighting

HF120 ARGB White fans support addressable RGB technology for a unique RGB lighting experience with 16.8 million colors. The hub LED design with 12 LEDs is equipped with ENERMAX LED lighting technology which offers bright and even lighting. The HF120 ARGB White can create colorful rainbow effects that are visible from the front and back of the fan.

Silent Operation

The fan blades of HF120 ARGB White are optimized for silent operation and the speed can be turned down to 500 RPM via PWM control.

HF120 ARGB White’s frame is equipped with rubber damping pads to prevent vibration transfer to the chassis and to ensure low noise operation.

Addressable RGB Lighting Synchronization

Synchronizable RGB lighting via addressable RGB header of motherboards from Asus, Asrock, MSI and Gigabyte. Programmable lighting effects via motherboards software. Razer Chroma support with compatible motherboards of Asrock and MSI.

Note: Addressable RGB LEDs run on 5V, do not connect them to a non-addressable 4 pin header with 12V.

Dual-Convex Blade Design

The Dual-convex fan blade is a result of precision engineering calculating the shape and angles.
The fan creates downforce air pressure and high-volume airflow.

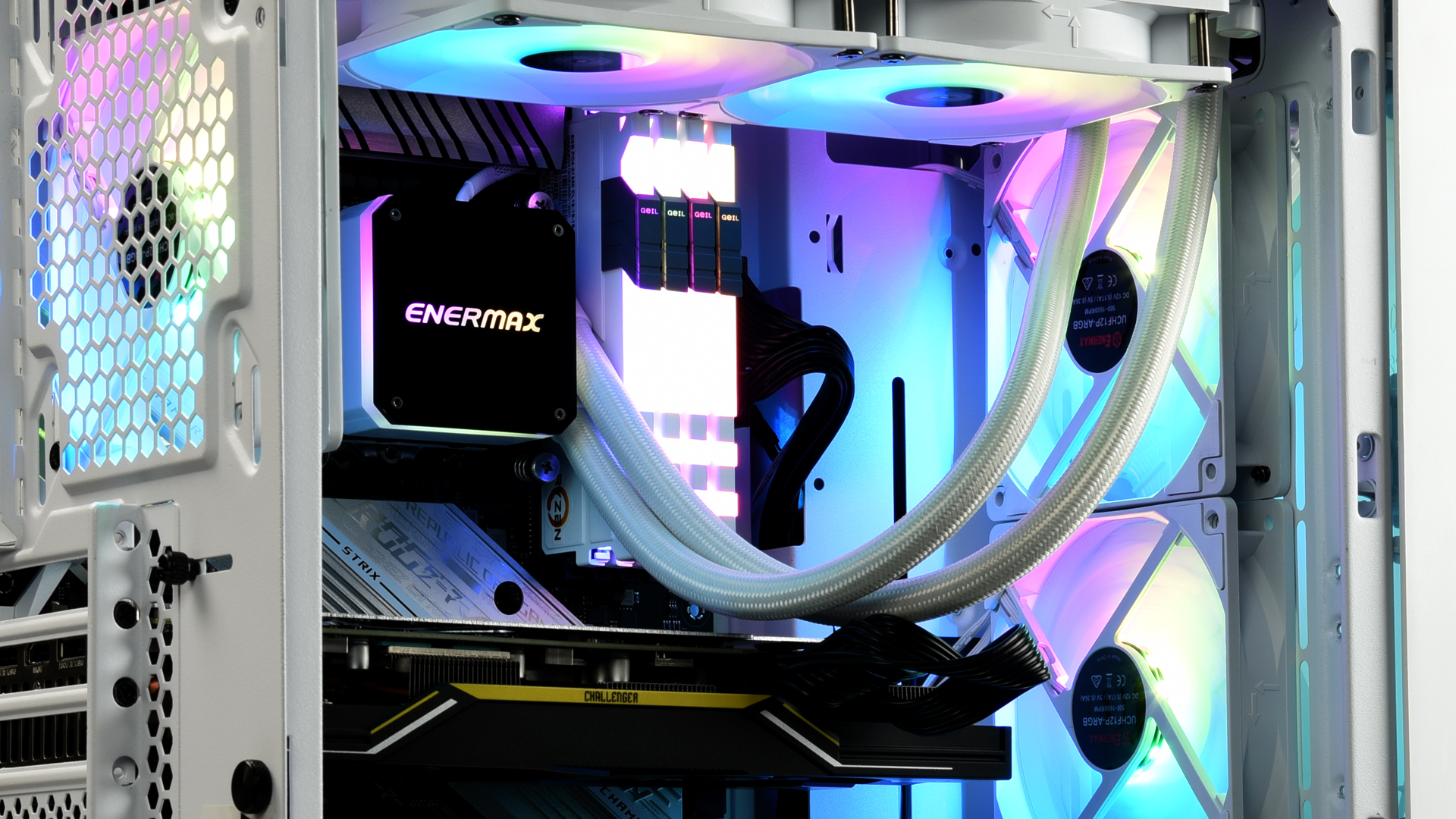

The HF120 ARGB White can set the fan speed up to 1,600 rpm providing strong cooling performance for CPU cooler radiators.

Control Box

The integrated RGB control box offers quick setup of 10 pre-set lighting effects without the need of a RGB motherboard or additional software.
