Addressable RGB Fan

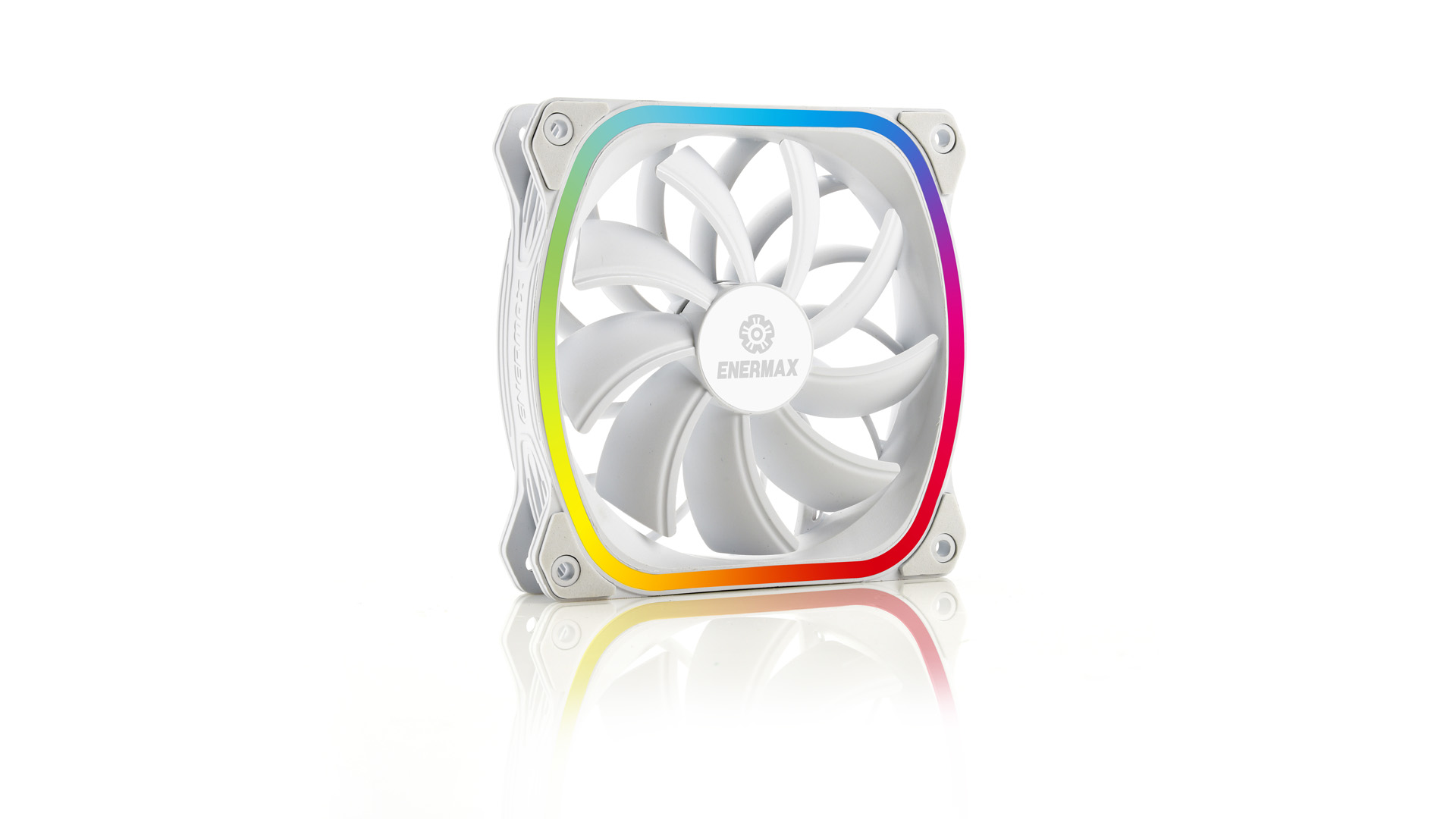

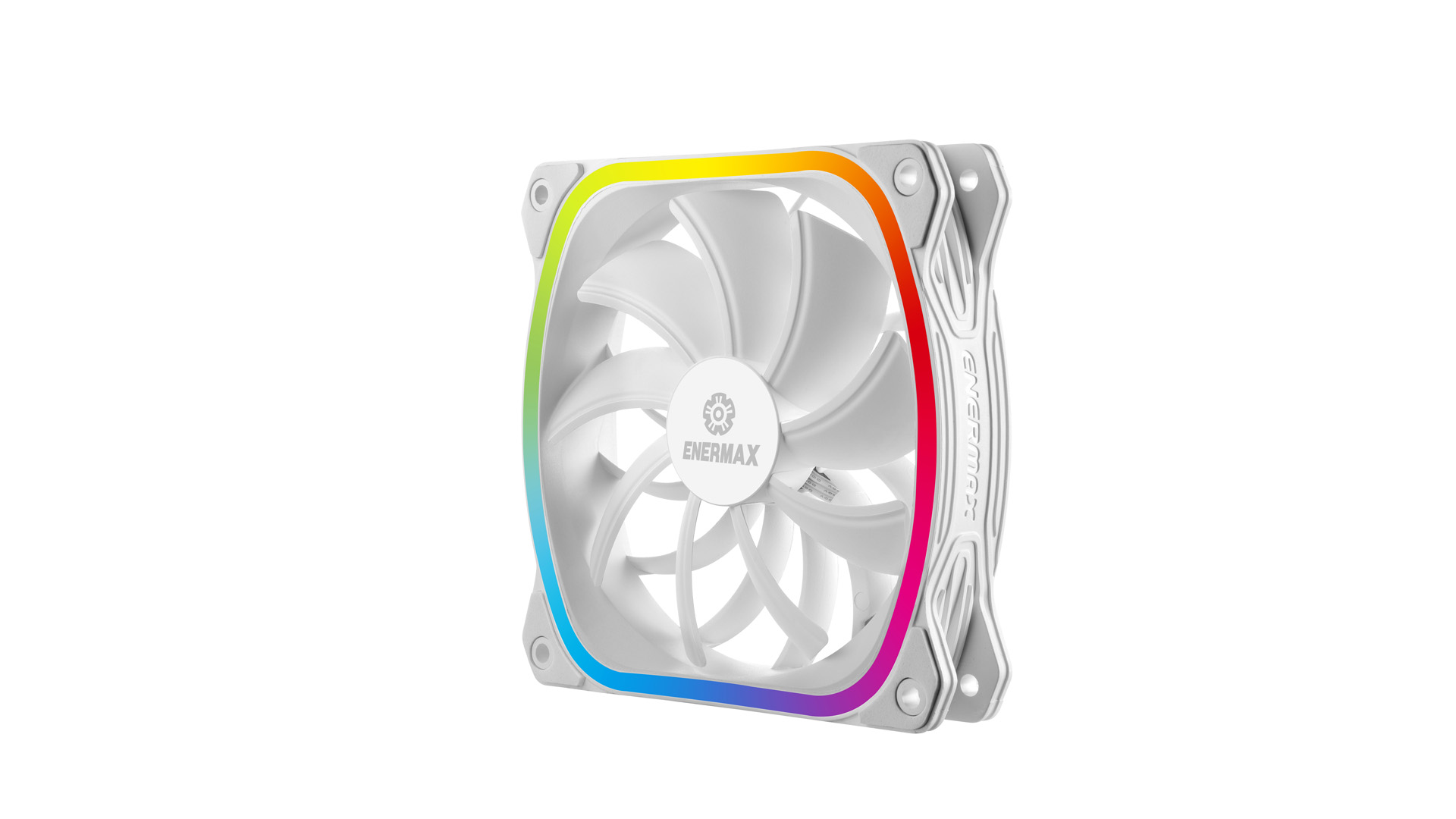

The SquA RGB White addressable RGB fan series is equipped with a square-shaped frame powered by ENERMAX LED LIGHTING Technology, which provides incredibly bright and even lighting. The addressable RGB LEDs can create colourful rainbow effects and allow synchronization with supported motherboard software. SquA RGB White is designed for silent operation without compromising performance and therefore has a starting speed of 300 rpm and up to 40% more airflow than other RGB fans. To optimize the airstream SquA RGB generates concentrated vortex with the Vortex Frame Design and facilitates air inlet effectively with the ENERMAX’s Air Inlet Design.

3 Fan Pack | UCSQARGB12P-W-BP3

Addressable RGB LED Lighting

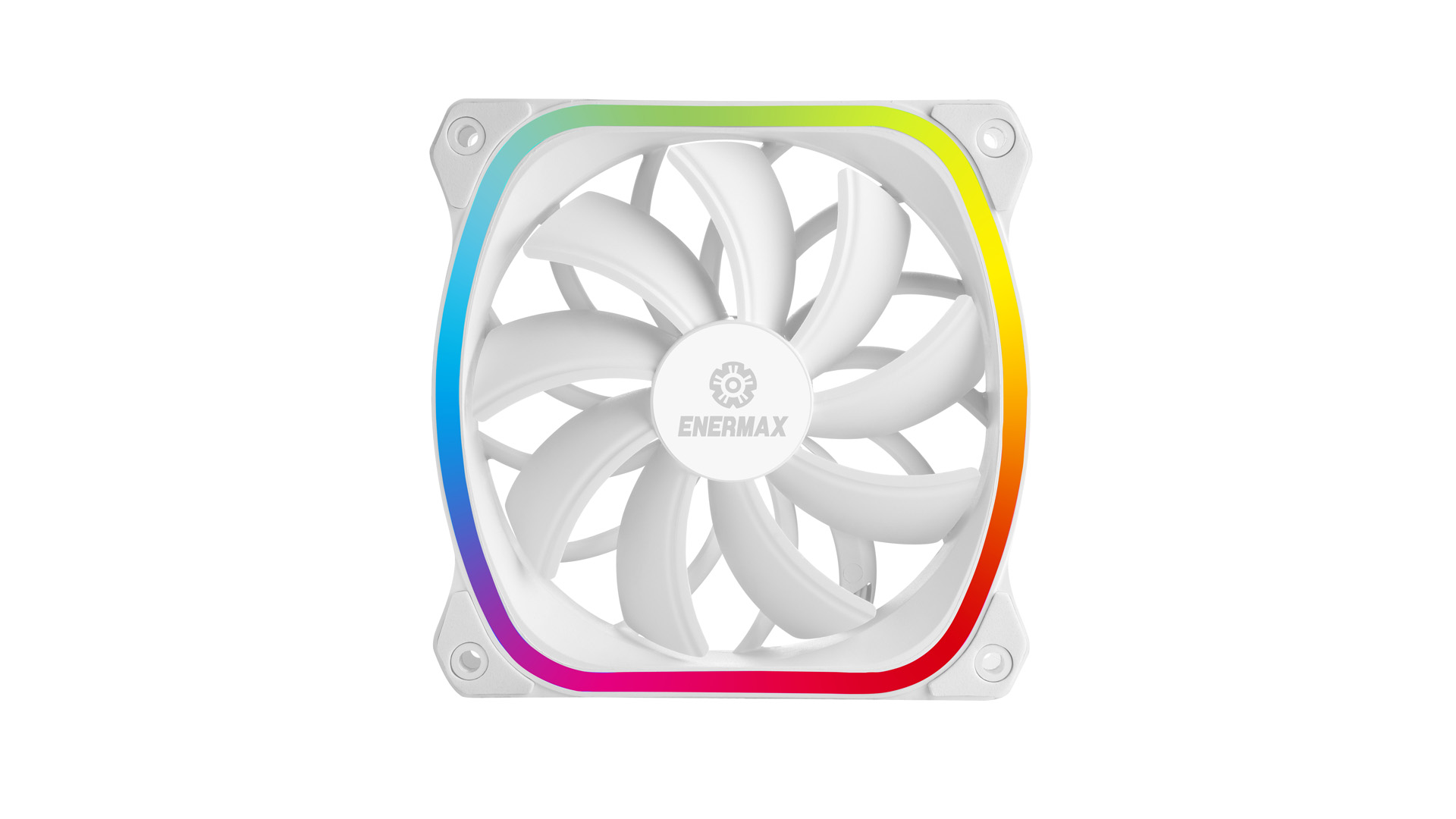

SquA RGB White fans support addressable RGB technology for a unique RGB lighting experience. The square-shaped frame equipped with the ENERMAX LED Lighting Technology offers bright and even illumination without visible LED spots.

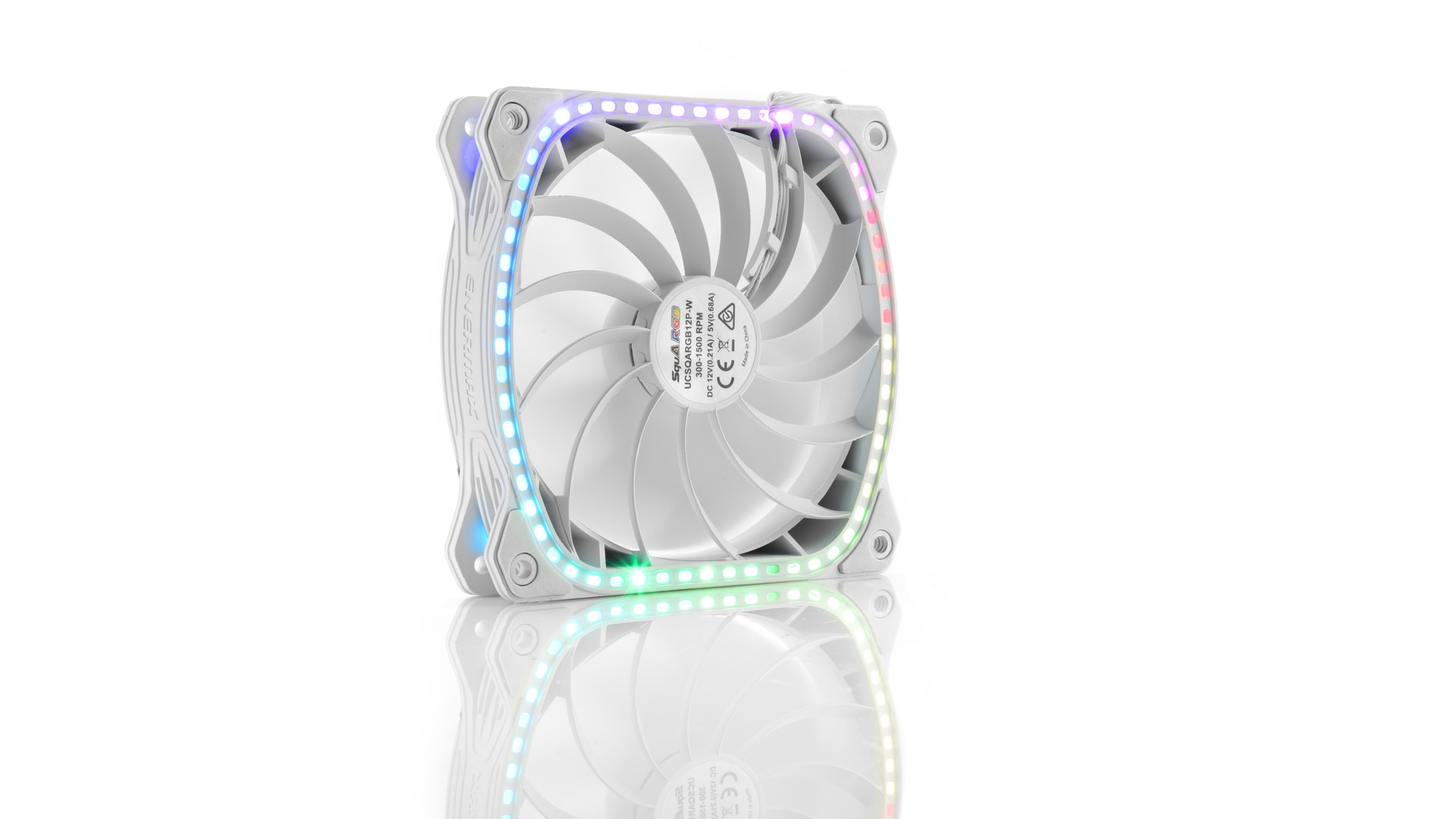

Sparkling Backside

SquA RGB White is equipped with light vents on the backside of the frame creating a diamond-like effect where other RGB fans just show black.

Silent Operation

The fan blades of SquA RGB White are optimized for silent operation and the speed can be turned down to 300 RPM.

SquA RGB White’s frame is equipped with rubber damping pads to prevent vibration transfer to the chassis and to ensure low noise operation.

Addressable RGB Lighting Synchronization

Synchronizable RGB lighting via addressable RGB header of motherboards from Asus, Asrock, MSI and Gigabyte. Programmable lighting effects via motherboards software. Razer Chroma support with compatible motherboards of Asrock and MSI.

Note: Addressable RGB LEDs run on 5V, do not connect them to a non-addressable 4 pin header with 12V.

Airflow Optimization

Efficient integration of the RGB Frame results in an increased blade surface, which gives SquA RGB White 40% more airflow compared to other RGB fans.
To optimize the airstream SquA RGB White generates concentrated vortex with the Vortex Frame Design and facilitates air inlet effectively with the ENERMAX’s Air Inlet Design.

Plug and Play*

For stand-alone operation SquA RGB White Single Pack fan displays rainbow RGB lighting effects by connecting the PWM power cable.

* Single Pack only

Control Box*

The integrated RGB control box offers quick setup of 10 pre-set lighting effects without the need of a RGB motherboard or additional software.

* 3 Fan Pack only

Technical Specifications

Fan Quantity 3x
Bearing Type

MTBF 100,000h @25°C
Number of Blades 9
Fan Dimensions
120 x 120 x 26mm
Fan Speed
300 – 1,500RPM
Fan Control
LED Type
WS2812B addressable RGB
Rated Voltage Fan
Rated Current Fan
0.21 A
Rated Voltage Fan
5V 5V  (or 12V when connecting to the PWM header only)
Rated Current LED
0.68 A 0.68 A (or 0.28A when connecting to the PWM header only)
Total Current LED
2.04 A 0.68 A
Fan Power Connector 4 pin PWM (GND/12V/Tacho/PWM)
Noise Level
12 – 23dB(A)
Air Flow
41.67 – 115,99m3/h
Air Flow
24.53 – 68,27CFM
Static Pressure
0.17 – 1.898mm-H2O
RGB Controller
RGB Sync. Connector 3 pin ARGB (5V/Data/-/GND)
RGB Sync. Compatibility
Asus, Asrock, MSI, Gigabyte, Razer Chroma (with Asrock and MSI mainboards)
Lighting Modes Racing-Rainbow (Default), Breathing-Rainbow, Flash-Rainbow, Overlaying-Rainbow, Flow-Rainbow, Colors auto-run (8 colors), Ripple auto-run (8 colors), Overlaying-RED, Overlaying-GREEN, Overlaying-BLUE Racing-Rainbow
Power Connector SATA Power
4 pin Molex
Max. Current Controller
3 A

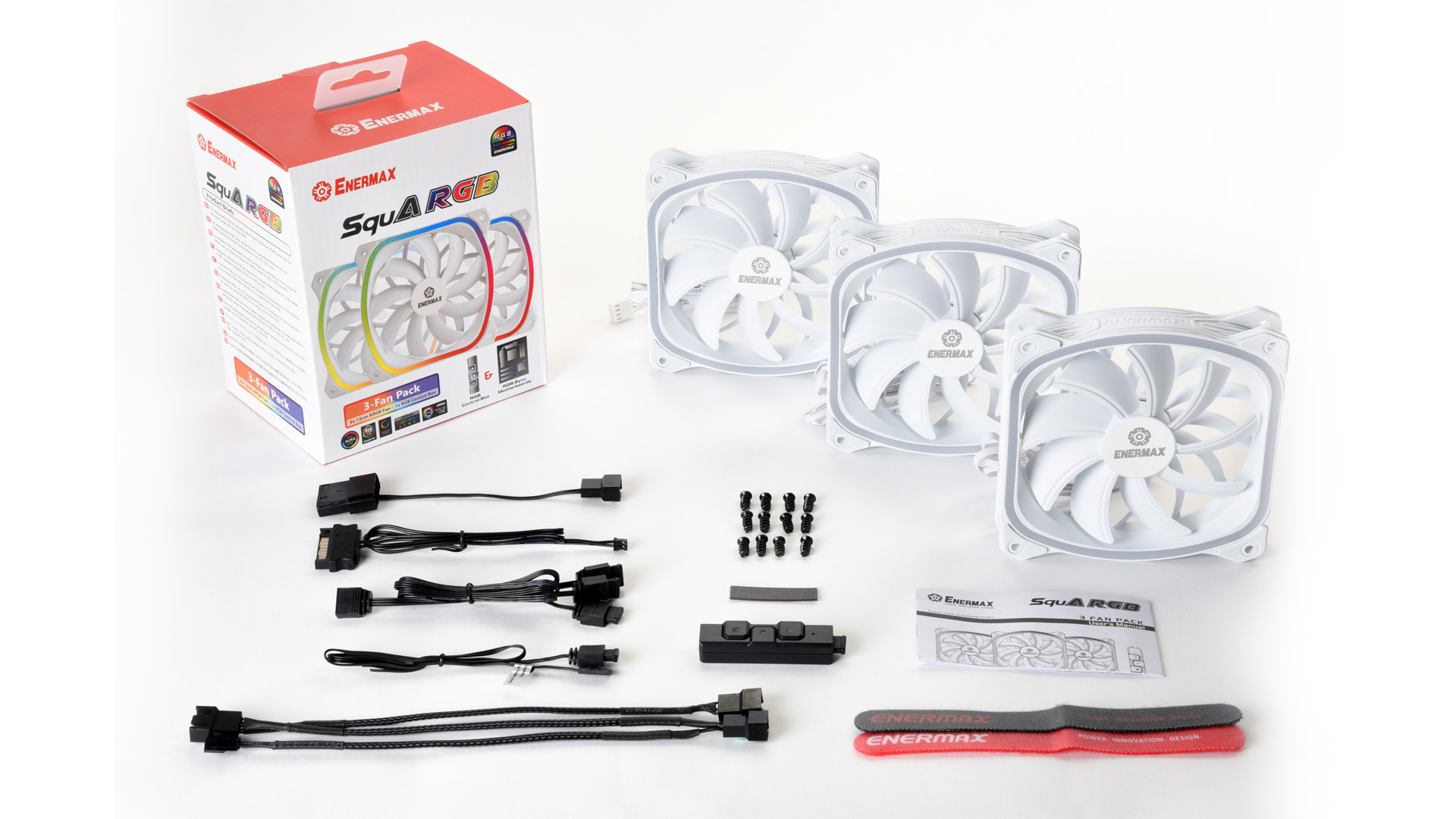

Included in the delivery
3 x SquA RGB White fan, 12 x screws, RGB control box, magnetic adhesive, molex power cable, SATA power cable, aRGB 3 to 1 cable (5V/D/-/G) , GIGABYTE aRGB adapter, PWM 3 to 1 cable
1 x SquA RGB White fan, 4 x screws, molex to 4-pin PWM adapter, aRGB Y cable (5V/D/-/G) , GIGABYTE aRGB adapter


Dealer Information
Product Dimensions 120 x 120 x 26mm 120 x 120 x 26mm
Product Weight
Product Box Dimensions 160 x 133 x 100mm 160 x 133 x 32mm
Product Box Gross Weight 0.74kg 0.25kg
Master Carton Dimensions 538 x 335 x 309mm 490 x 340 x 270mm
Master Carton Gross Weight 14.8kg 15.2kg
Master Carton Pieces 20 60
EAN-Code 4713157724311 4713157724304

Datasheet EN – SQUA RGB White
Manual – SQUA RGB
Product Pictures – SQUA RGB White
