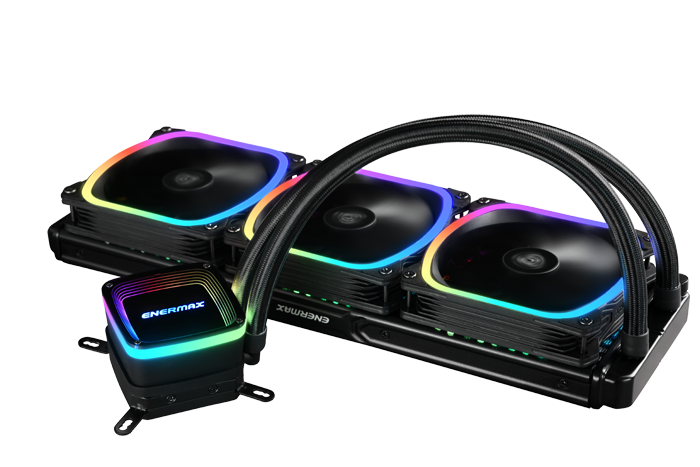

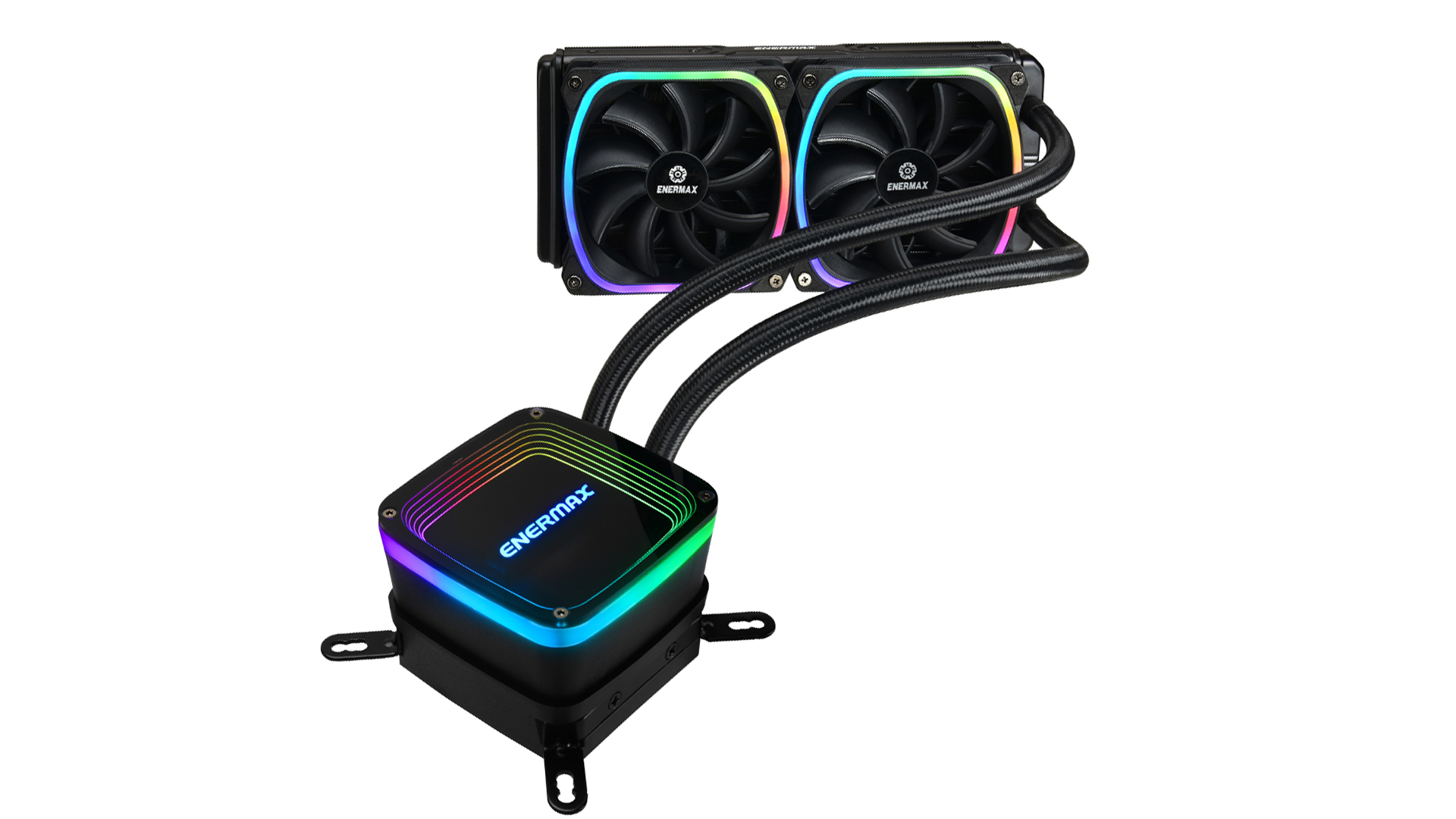

AQUAFUSION is an all-in-one CPU liquid cooler with individually addressable RGB LEDs. The RGB water block is equipped with a 3D Layer Design with Aurabelt™ for unique lighting effects. Together with ENERMAX SquA RGB addressable fans, AQUAFUSION can create dynamic visual experience via motherboard software or included control box. The ENERMAX SquA RGB fans create a strong centred air pressure through the Vortex Frame Design to quickly dissipate heat from the radiator. Thanks to ENERMAX’s patented Dual-Chamber Design, Central Coolant Inlet (CCI) and Shunt-Channel Technology (SCT) the cooler achieves faster heat transfer and extended lifetime. AQUAFUSION is a one of a kind cooling solution for custom gaming rigs or stunning system builds for Intel and AMD CPUs.
AQUAFUSION is an All-in-One CPU liquid cooler with pre-filled coolant. This makes a water cooler as simple as a regular air cooler. Easy installation and no maintenance. The fully sealed design ensures the lowest evaporation of liquid and a long product lifetime.

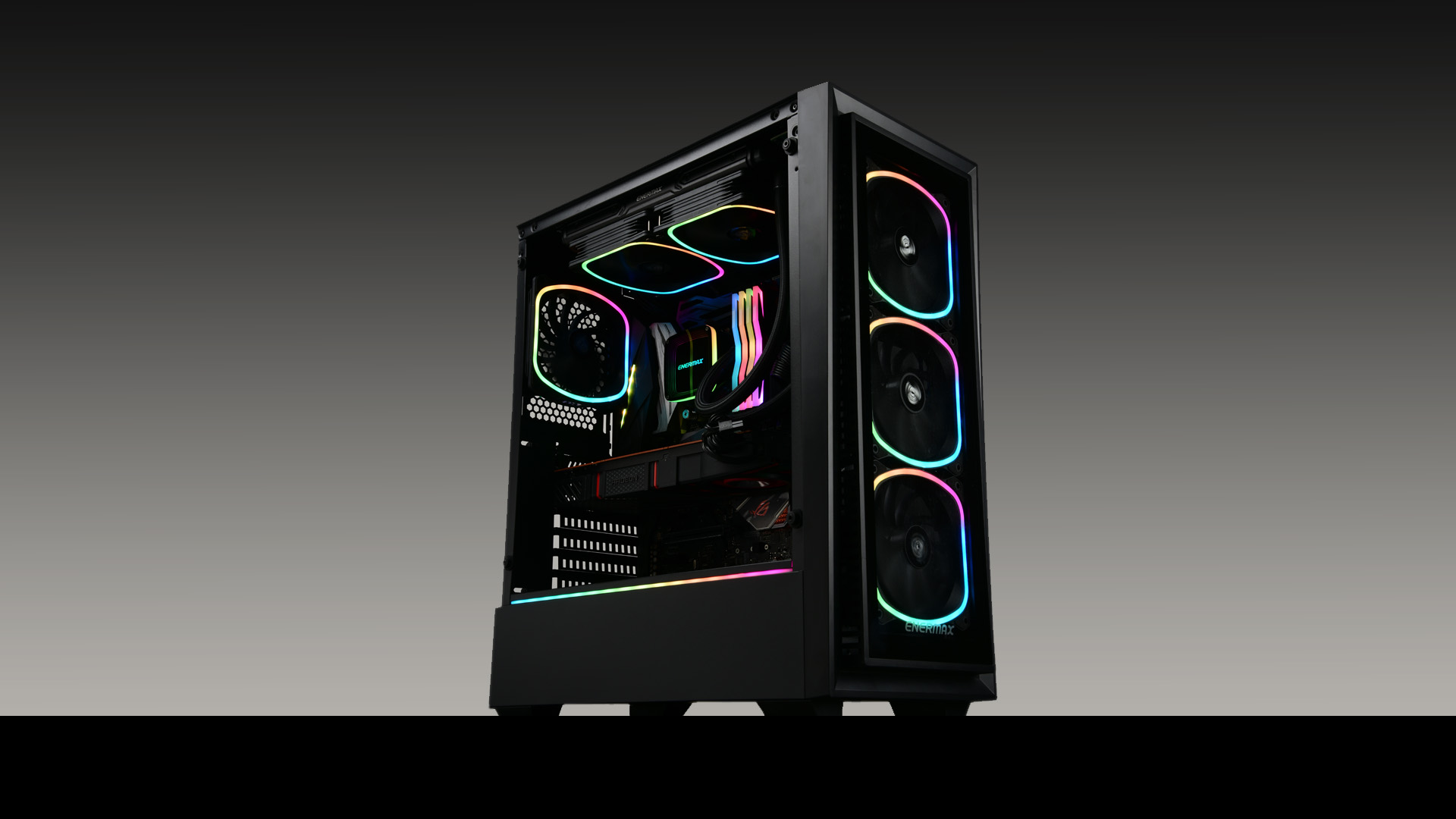

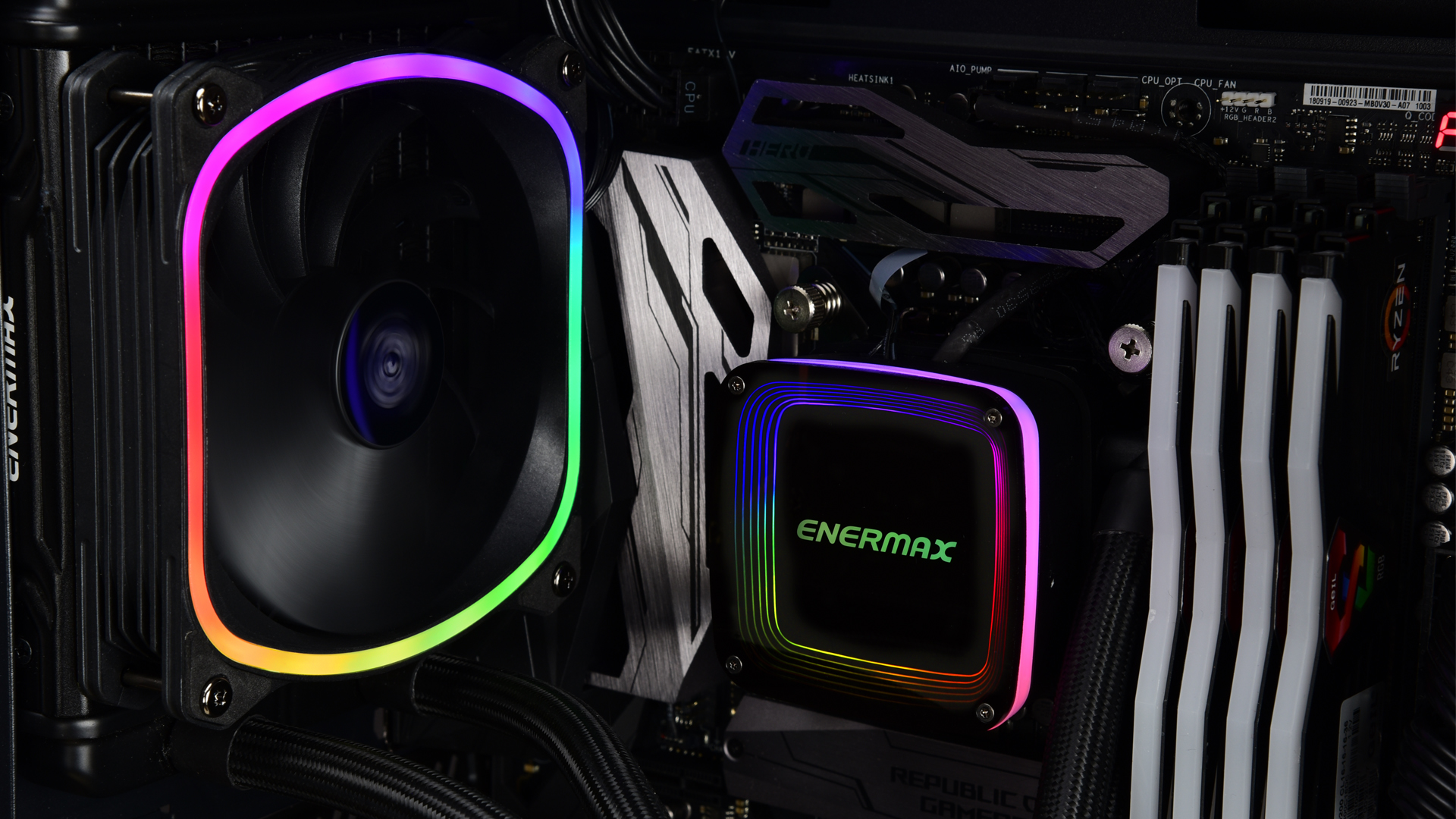

With colourful lighting and silent cooling, AQUAFUSION is best for case mods and gaming systems.
The patented Dual-Chamber Design isolates the pump from the heated coolant, extending the life of the cooler.
The cold coolant enters the first chamber with the pump inside and is then forced through the cold plate absorbing heat. The heated coolant is collected in the second chamber and then transported to the radiator for cooling.
The Central Coolant Inlet (CCI) injects coolant in the middle area above the CPU and distributes it evenly across the cold plate using the patented Shunt Channel Technology (SCT). The result is a shorter coolant flow path and faster heat transfer.

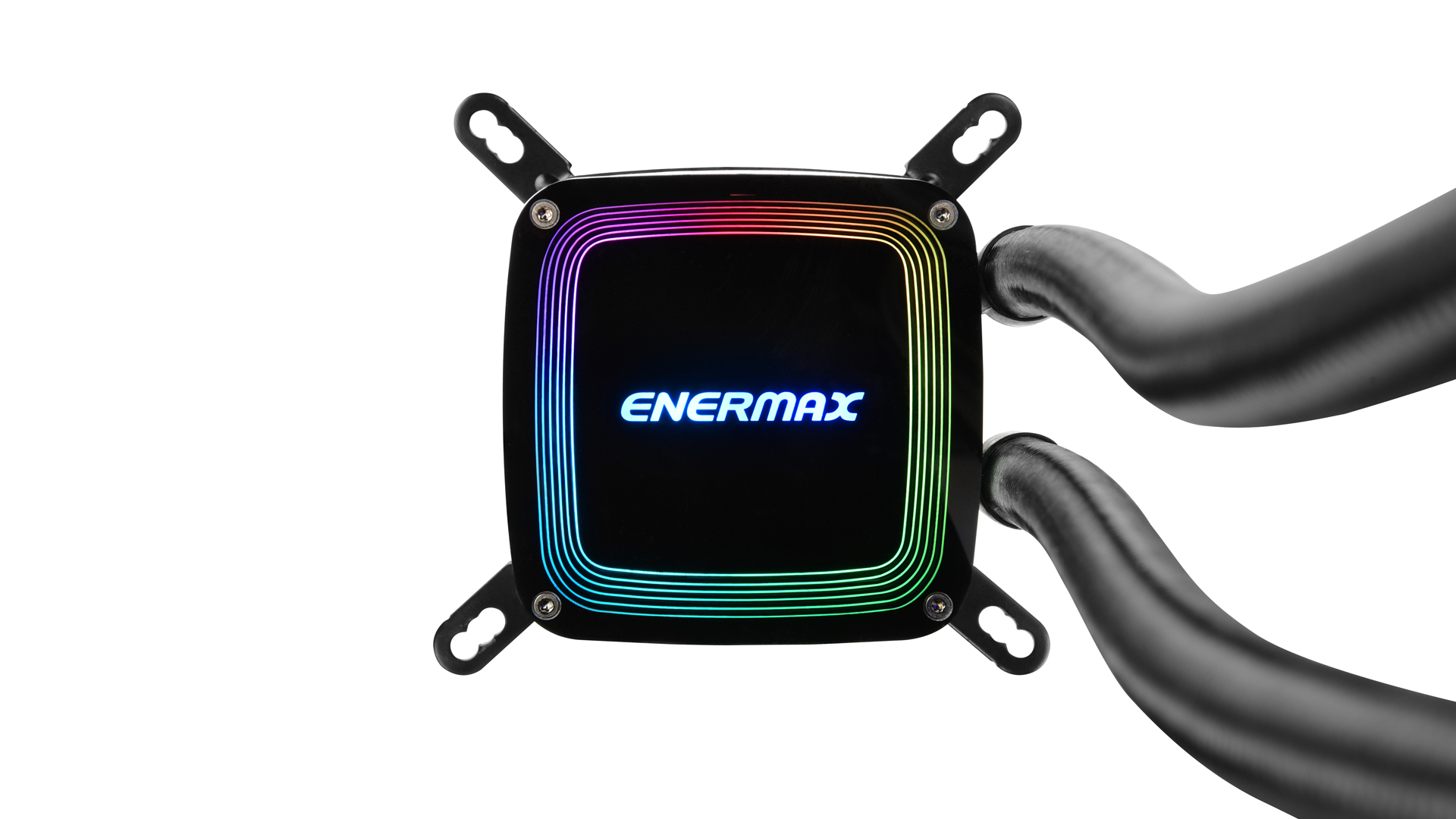

The premium RGB water block with 3D Layer Design and Aurabelt™ lighting is able to create colourful rainbow effects with 16.8 million colours.
Synchronizable RGB lighting via addressable RGB headers of motherboards from Asus, Asrock, MSI and Gigabyte. Programmable lighting effects via motherboards software. Razer Chroma support with compatible motherboards of Asrock and MSI.
Note: Addressable RGB LEDs run on 5V, do not connect them to a non-addressable 4 pin header with 12V.
ENERMAX SquA RGB fans support addressable RGB technology for a unique RGB lighting experience. The fan is equipped with a Vortex Frame Design that can generate a centred, strong air pressure that is optimized for radiators.
SquA RGB’s frame is equipped with rubber damping pads to prevent vibration transfer to the chassis.
The integrated RGB control box offers quick setup of 10 pre-set lighting effects without the need for an RGB motherboard or additional software.
The premium woven tubings are made of flexible and long-lasting polyamide rubber with multiple layers ensuring zero permeability and long-lasting operation. The tubes offer an easy system installation thanks to a length of 400mm.
For maximum safety, the connections to the fittings are sealed with extra strong glue.

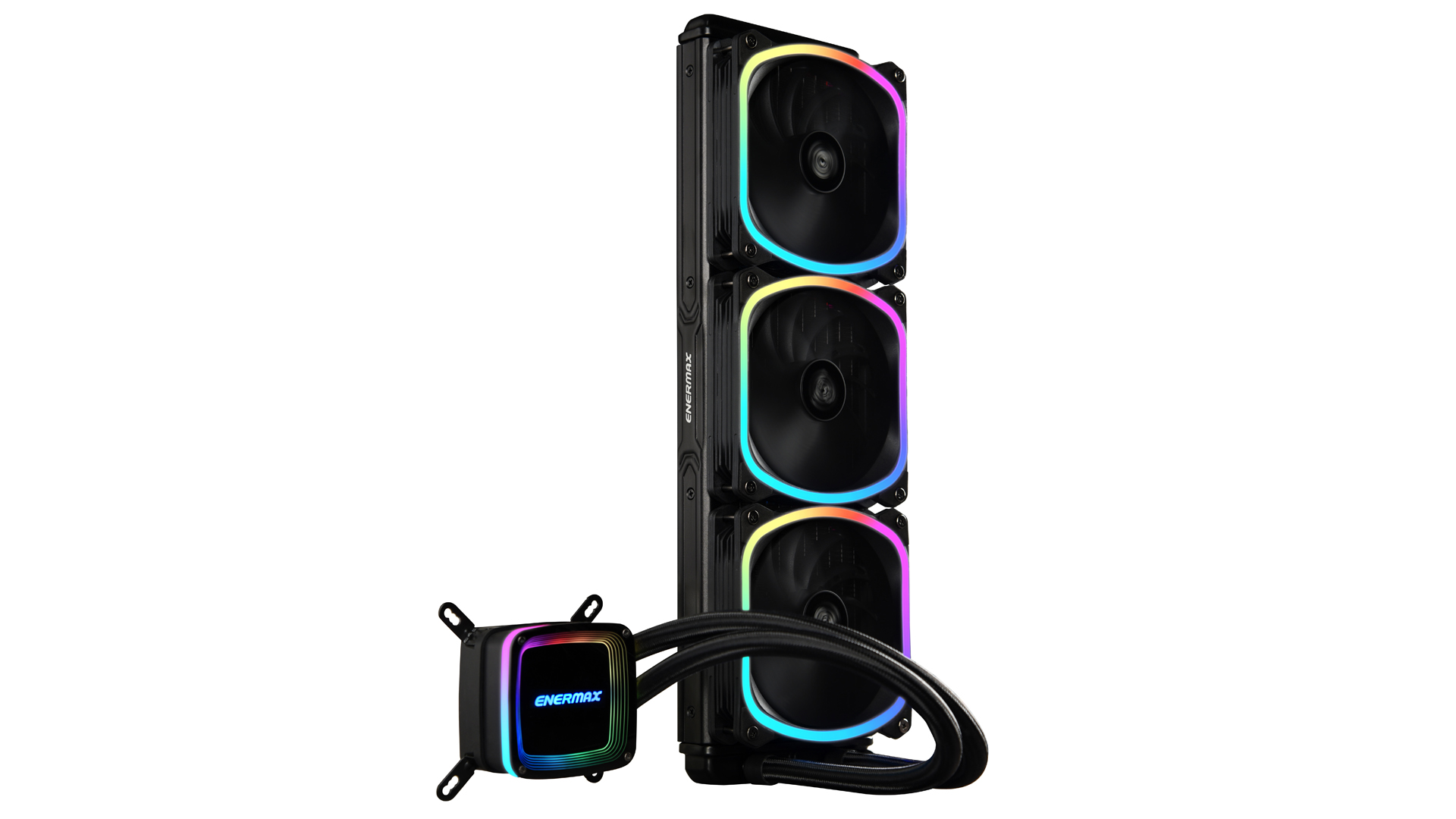

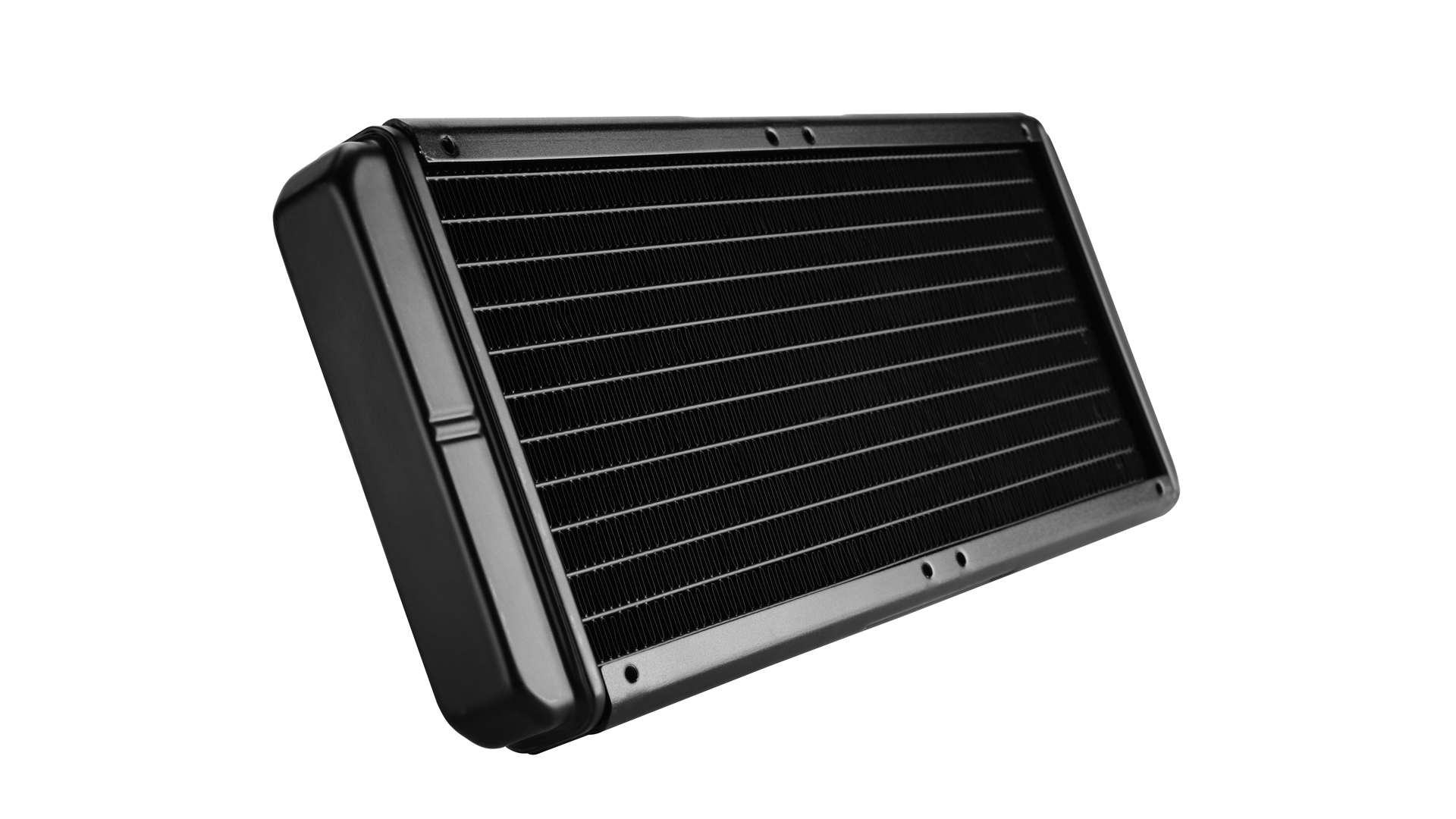

The radiator offers a large cooling surface with high heat exchange capacity thanks to the fine channels and thin aluminium fins. AQUAFUSION is available with a compact 120mm radiator with 300W TDP cooling capacity, a 240mm radiator with 360W TDP cooling capacity and a 360mm radiator with 380W TDP cooling capacity.
Quick & user-friendly universal mounting system supporting Intel® and AMD® sockets (excluding TR4/SP3 socket). The pressure adjustment spring system and high conductive Dow-Corning® thermal grease ensures a perfect contact with the CPUs heat spreader.
AQUAFUSION is compatible with 120mm fan mountings. Please ensure your case offers enough space to install the radiator.
|Intel® compatible Sockets||LGA 1700 ,1200 1700, 2066, 115x, 775, 2011(-3) Square ILM, 1366|
|AMD® compatible Sockets||AM5, AM4, AM3(+), AM2(+), FM2(+), FM1|
|Cold Plate Material||Nickel plated copper|
|Weight without Fan||–|
|Thickness including Fan||53.7mm|
|Thermal Design Power (TDP)||300W||360W||380W|
|Thermal Grease||Dow Corning® TC-5121 2g|
|RGB Sync. Connector||3 pin ARGB (5V/Data/-/GND)|
|RGB Sync. Compatibility||Asus, Asrock, MSI, Gigabyte (with adaptor), Razer Chroma (with Asrock and MSI mainboards)|
|Lighting Modes||Racing-Rainbow (Default), Breathing-Rainbow, Flash-Rainbow, Overlaying-Rainbow, Flow-Rainbow, Colors auto-run (8 colors), Ripple auto-run (8 colors), Overlaying-RED, Overlaying-GREEN, Overlaying-BLUE|
|Power Connector||SATA Power|
|Bearing Type||Ceramic bearing|
|Rated Voltage Pump||12V|
|Rated Current Pump||0.7A|
|Rated Voltage RGB LED||5V|
|Rated Current RGB LED||0.42A|
|Pump Power Connector||3 pin (GND/12V/Tacho)|
|Dimensions||154 x 120 x 27 mm||274 x 120 x 27 mm||394 x 120 x 27 mm|
|Fan Model||SquA RGB|
|LED Type||WS2812B addressable RGB|
|Fan Dimensions||120 x 120 x 26mm|
|Fan Speed||500 – 2,000RPM|
|Rated Voltage Fans||12V|
|Rated Current Fans||0.38 A||0.76 A (2x 0.38A)||1.14 A (3x 0.38A)|
|Rated Voltage RGB LEDs||5V|
|Rated Current RGB LEDs||0.68A||1.36A (2x 0.68 A)||2.04A (3x 0.68 A)|
|Fan Power Connector||4 pin PWM (GND/12V/Tacho/PWM)|
|Noise Level||17 ~ 32.6 dBA|
|Air Flow||39 ~ 79.8 CFM|
|Static Pressure||0.67 ~ 3.6 mm-H2O|
|Included in the delivery||Liquid cooler, 12cm SquA RGB fans, universal mounting kit for Intel® and AMD® sockets, Dow-Corning® Thermal Grease (TC-5121), molex adapter, RGB control box, RGB sync cable, SATA RGB controller power cable, RGB Gigabyte cable, 24 pin power adaptor, installation guide||Liquid cooler, 2x 12cm SquA RGB fans, universal mounting kit for Intel® and AMD® sockets, Dow-Corning® Thermal Grease (TC-5121), PWM fan Y-cable, molex adapter, RGB control box, RGB sync cable, SATA RGB controller power cable, RGB Gigabyte cable, 24 pin power adaptor, installation guide||Liquid cooler, 3x 12cm SquA RGB fans, universal mounting kit for Intel® and AMD® sockets, Dow-Corning® Thermal Grease (TC-5121), molex adapter, RGB control box, RGB sync cable, SATA RGB controller power cable, RGB Gigabyte cable, 24 pin power adaptor, installation guide|
|Product Dimensions (D x W x H)||154 x 120 x 53.7mm||274 x 120 x 53.7mm|
|Product Weight||0.90 kgs||1.05 kgs|
|Product Box Dimensions (D x W x H)||267 x 215 x 137mm||330 x 207 x 138mm|
|Product Box Gross Weight||1.53 kgs||1.89 kgs|
|Master Carton Dimensions (D x W x H)||552 x 300 x 460mm||435 x 355 x 440mm|
|Master Carton Gross Weight||13.27 kgs||12.59 kgs|
|Master Carton Pieces||8||6|
|Product Dimensions||394 x 120 x 27mm|
|Product Box Dimensions||448 x 205 x 137mm|
|Product Box Gross Weight||2.34kg|
|Master Carton Dimensions||467 x 292 x 440mm|
|Master Carton Gross Weight||10.3kg|
|Master Carton Pieces||4|
