Addressable RGB EATX Case

MAKASHI II MKT50, the master of light art. Two double light strips with addressable RGB LEDs can be conveniently controlled via the I/O panel or via synchronisation with the mainboard. The spacious interior allows the installation of E-ATX mainboards. The frameless side panel of tempered glass allows a full view of the components. A flexible cooling system offers the possibility to install water coolers with 280 and 360 mm radiators or up to 8 fans. The MAKASHI is the perfect solution for gamers and modders who value elegant design.

Technical Specifications

ECA-MKT50-BB-ARGB-01
General
Color Black with LED RGB
Material 0.6mm SPCC steel, 4mm tempered glass
Dimensions 451 x 212 x 495mm
RGB Lighting
LED Type WS2812B RGB addressable
Lighting Modes Rainbow, Butterfly, Tricolor Butterfly, Monochrome Brick, Colors Breathe, Radar, Tricolor Scroll, Bilateral Brick, Shooting Star, Windmill, Parti-colored, Red, Orange, Yellow, Green, Azure, Blue, Purple, White
Rated Voltage LED 5V
RGB Sync. Connector 3 pin ARGB (5V/Data/-/GND)
RGB Sync. Compatibility Asus, Asrock, MSI, Gigabyte, Razer Chroma (with Asrock and MSI mainboards)
Power Connector SATA Power
Fan Slots
Front 3 x 120mm
Top 3 x 120/ 2 x 140mm
Rear 1 x 120 (pre-installed)
Tunnel PSU 1 x 120mm
Liquid Cooling
Front 240/ 360mm radiator
Top 240/ 280/ 360mm radiator
Rear 120mm radiator
Installation Slots
Front
Motherboard Tray 4 x 2,5″ HDD/ SSD
Bottom Drive Bays 2 x 2,5″/ 3.5″ HDD/ SSD
Expansion Slots 7
I/O Panel
1x USB-A (USB 3.2 Gen 1×1)*, 2x USB-A (USB 2.0), HD Audio, LED control
Maximum Compatibility
Graphics Card Length 410mm
CPU Cooler Height 161mm
PSU Size Standard ATX 180mm / 200mm (by moving the HDD cage forward)
Motherboards E-ATX, ATX, micro ATX, mini ITX

*USB 3.2 Gen 2×1 = USB 3.1 Gen 2
USB 3.2 Gen 1×1 = USB 3.1 Gen 1 = USB 3.0

Dealer Information
ECA-MKT50-BB-ARGB-01
Product Dimensions 450 x 213 x 495mm
Product Weight 6,9kg
Product Box Dimensions 535 x 270 x 520mm
Product Box Gross Weight 8,1kg
EAN-Code 4713157725394



No video

Downloads

Datasheet EN – Makashi II MK50
Manual – Makashi II MK50
Product Pictures – Makashi II MK50



Black | ECA-MKT50-BB-ARGB-01

Design

The dark black Makashi II MKT50 case comes with two embedded LED strips along the front that emit colourful rainbow effects with 16.8 million colours. Meanwhile, a frameless, tempered glass panoramic window offers a wide view of your hardware.

Addressable RGB Lighting

The front RGB strips can change between 19 pre-set lighting effects. The RGB LEDs can be synchronized with compatible motherboards from ASUS, ASRock, MSI and Gigabyte via addressable RGB headers. The case is also working with Razer Chroma in combination with a compatible Asrock or MSI RGB mainboard.

(Pressing the reset/lighting control button for 3 seconds switches to M/B control.)

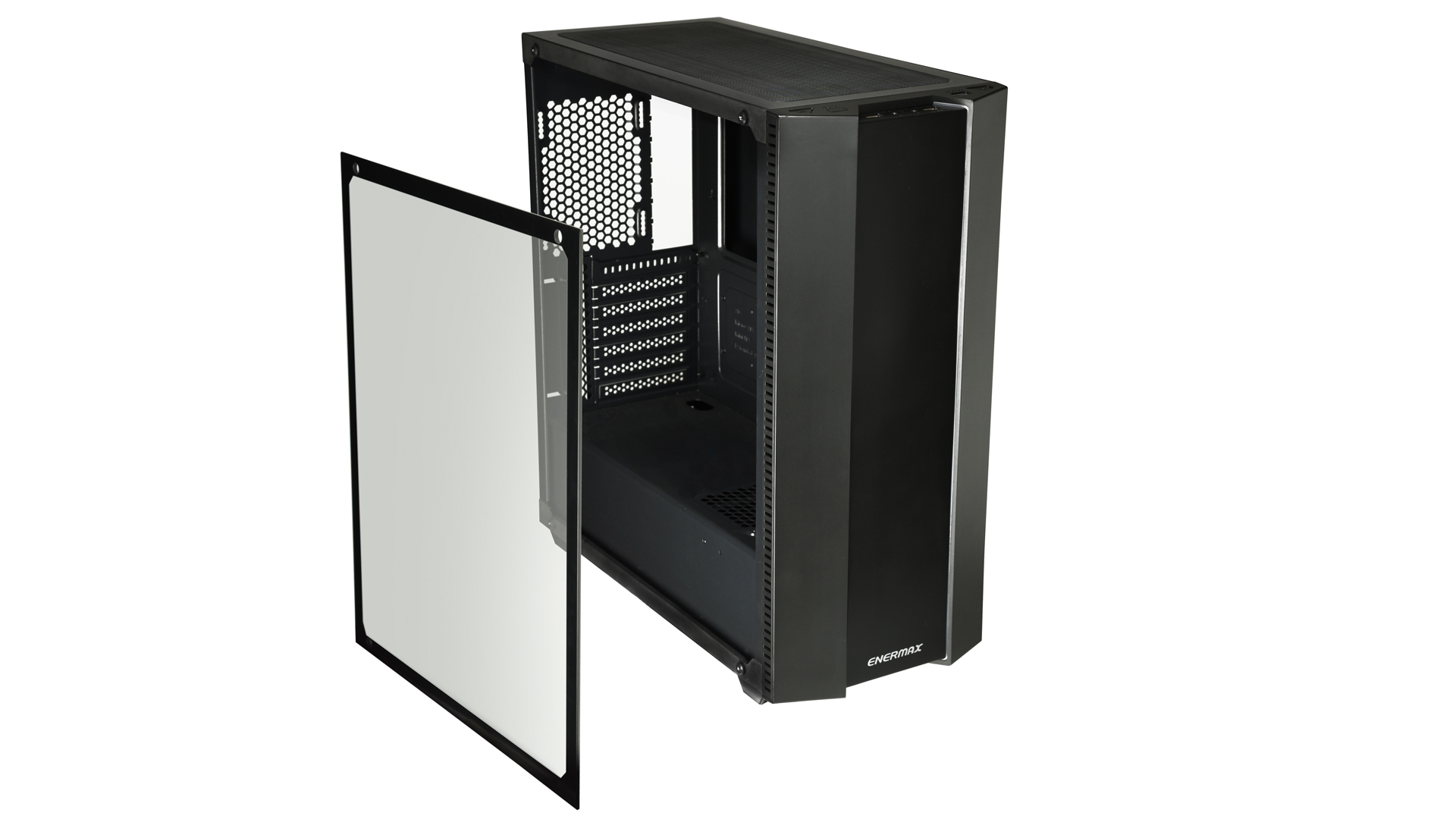

Panoramic Tempered Glass Window

The panorama window made of 4 mm thick tempered glass is fixed with 4 thumb screws that allow easy toolless access to the components.

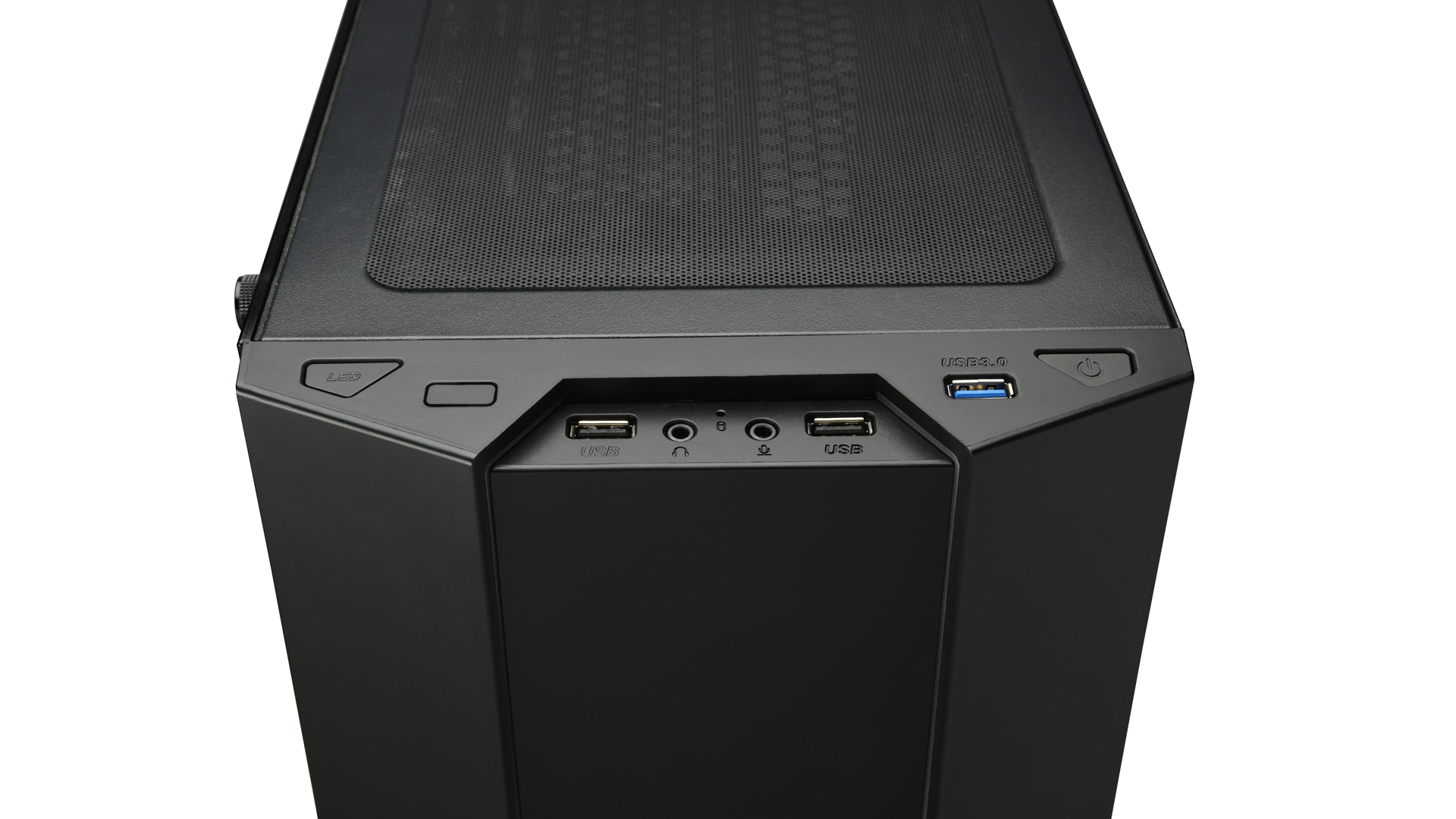

I/O Panel

The easily accessible I/O panel on the top of the case is equipped with anti-dust rubber plugs covering the USB ports and headphone jacks. At the touch of a button, the RGB effects can also be controlled from here.

Advanced Cooling

The flexible cooling system configuration supports 3x designated areas for liquid cooler installation supporting radiators of 360, 280, 240, 140 and 120 mm.

The MAKASHI II MKT50 offers flexible cooling options with up to 8 fans.

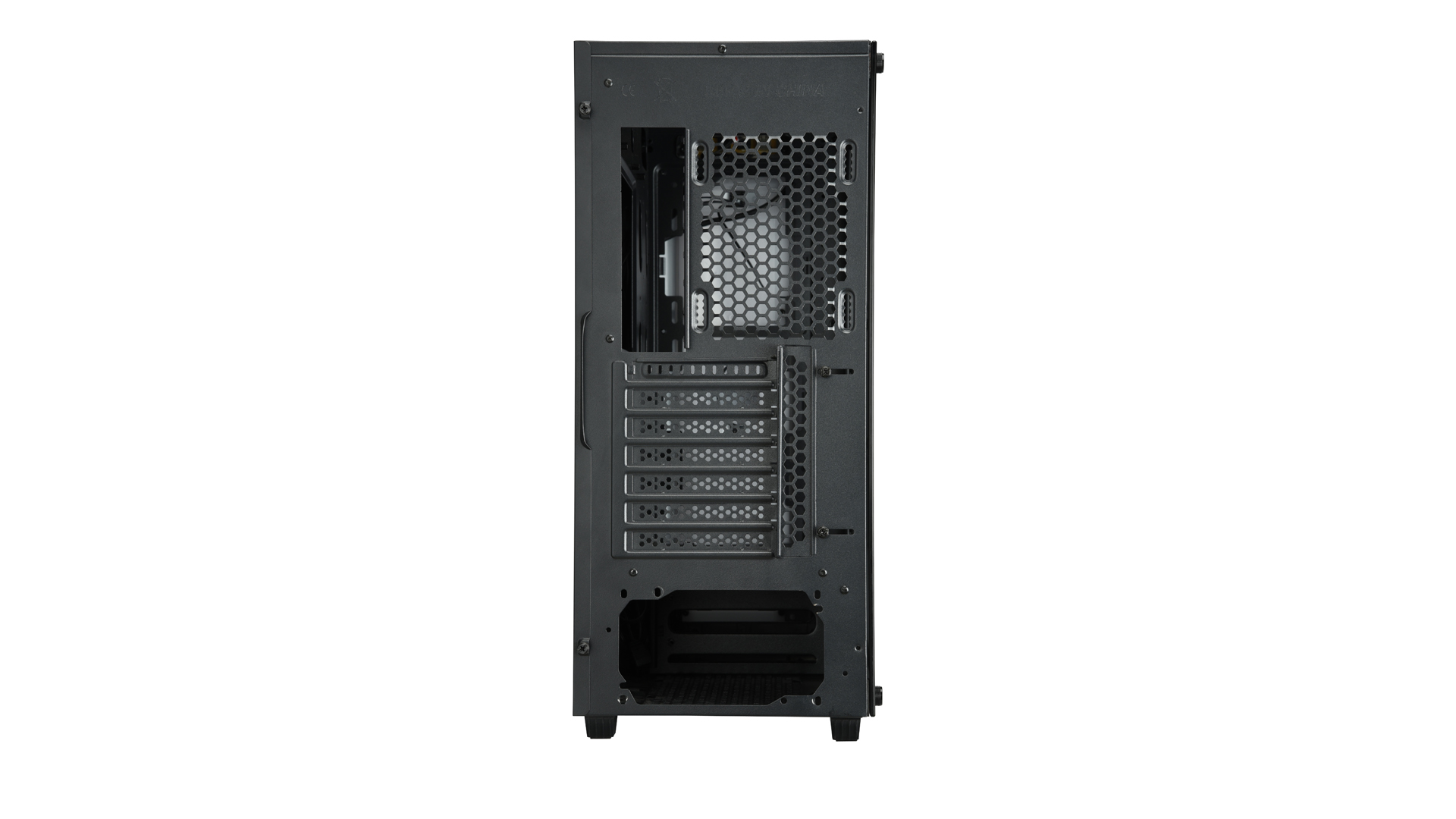

Back (exhaust)
1 x 120mm fan (included).

Top (exhaust)
2 x 140mm fans / 3 x 120mm fans.

PSU tunnel (exhaust)
1 x 120mm fan.

Front (intake)
3 x 120mm fans.

Flexible System Configuration

The Makashi II MKT50 supports E-ATX, ATX, Micro-ATX and Mini-ITX motherboards. CPU coolers up to 161 mm and graphics cards up to 410 mm can be installed. This offers a wide range of system configurations.

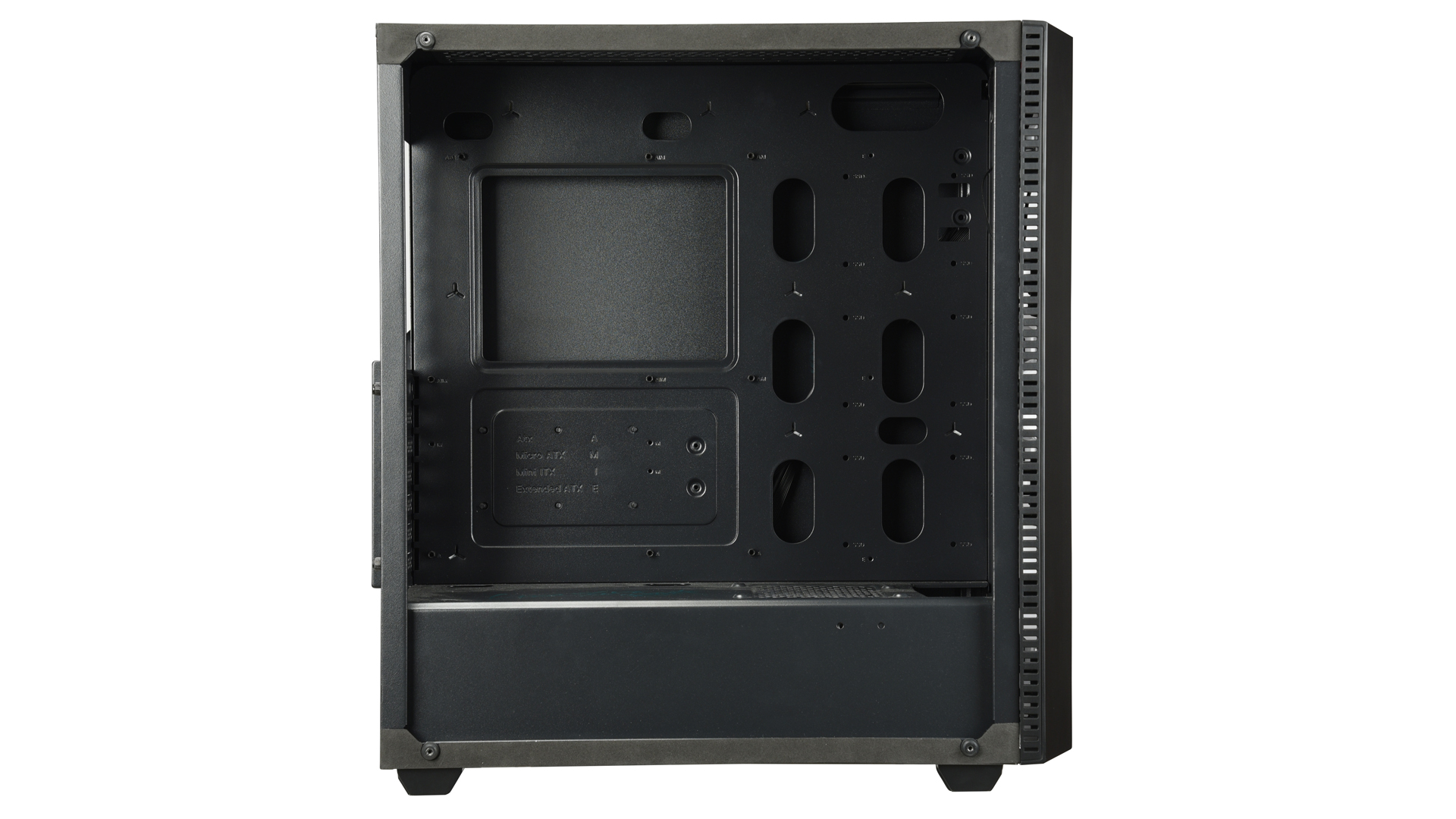

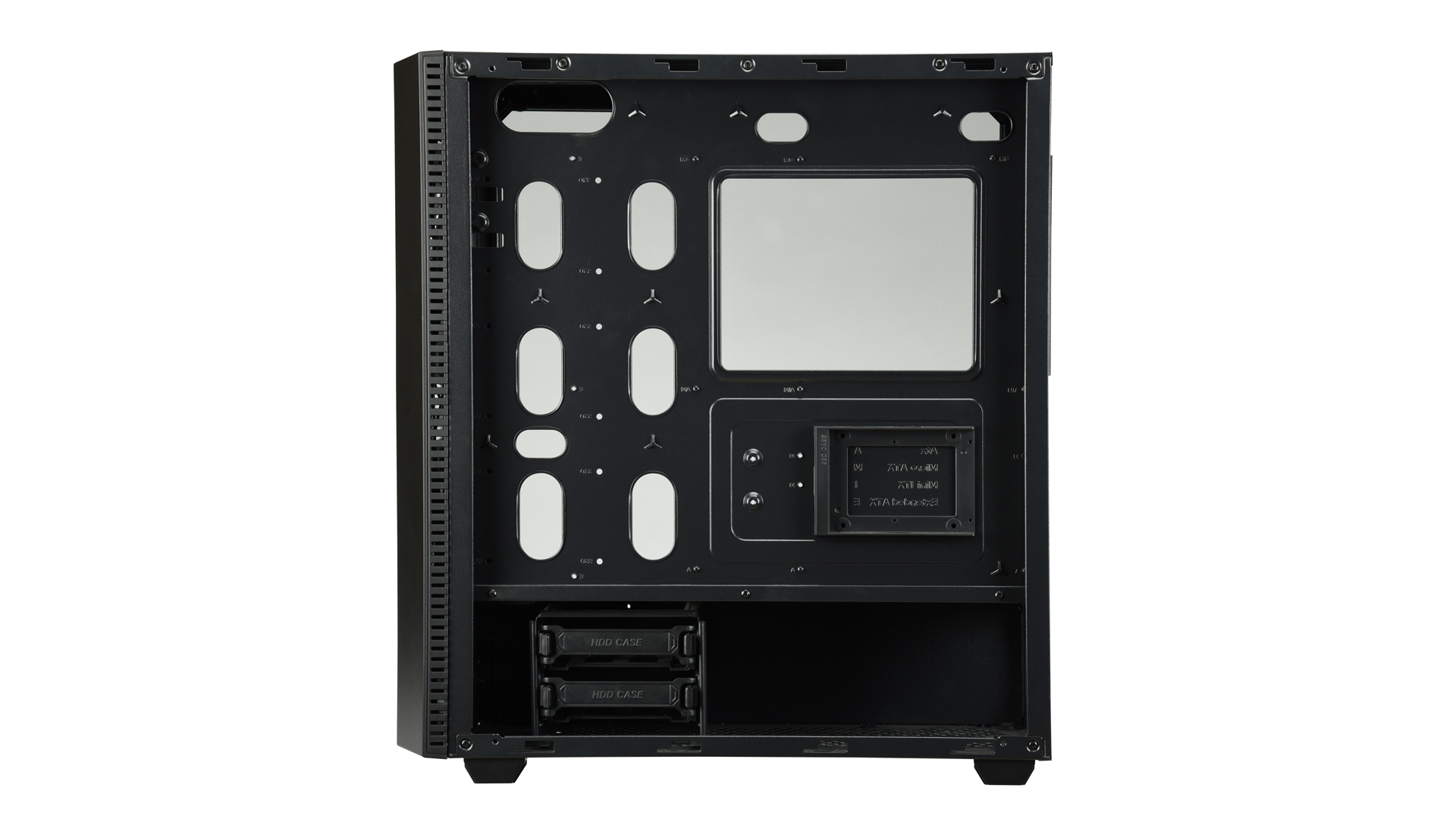

Storage installations

MAKASHI II MKT50 offers a wide range of options for various applications. The case supports the installation of up to 6 x 2.5″ SSDs or 2x 3.5″ HDD drives and 4x 2.5″ SSDs. The storage devices are mounted behind the mainboard, on the inner side or in the HDD cage. For the installation of longer power supply units up to 200 mm, the hard drive cage can be moved towards the front.
