500 | 600W

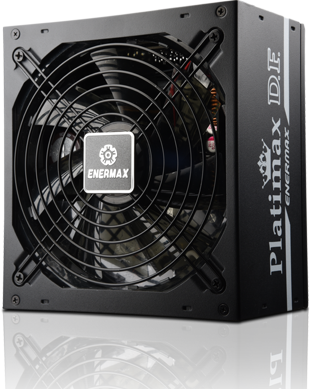

PLATIMAX D. F. is the successor of the award-winning PLATIMAX series. The 80Plus Platinum-certified PSU series is equipped with the patented DFR ™ (Dust Free Rotation) technology, preventing dust accumulation and granting a cleaner and long-lasting PSU. The 500 and 600W models have a 139mm Twister Bearing fan which rotates at constant 550RPM up to a workload of 80%. With a maximum speed of 1000 RPM, the almost inaudible fan grants an extremely silent operation. The fully-modular PSU comes with individually sleeved cables (SLEEMAX™) offering further protection and the highest flexibility for system installation. This high-end PSU is the perfect solution for gaming systems and graphic workstations.

Funkykit [EN] Review
i2Hard [RU] Review
Tweak.dk [DK] Review
GameZoom [DE] Review
Hardware Overclock [DE] Review
Tweak [DK] Review
Hadwareluxx Community [DE] Review
Hardwareinside [DE] Review
Tech-Review [DE] Review
Tech-Review [DE] Review
Noticias3d [ES] Review
PUREOC [EN] Review
Computer Power User [EN] Review
Nitroxsenys [RU] Video Review
JonnyGuru [EN] Review
GameZoom [DE] Video Review
Mod Your Case.de [DE] Review
HwT [DK] Review
Hardwareluxx [DE] Review
Mod Your Case.de [DE] Review
Geeknetic [ES] Review
GameZoom [DE] Review
TweakPC [DE] Review
Mod Your Case.de [DE] Review
TweakPC [DE] Review
Allround-PC [DE] Video Review
Technews [IT] Review
OCinside [DE] Review
500W | EPF500AWT | Fully Modular
600W | EPF600AWT | Fully Modular
further models


The 80PLUS® Platinum-certified power supply achieves up to 94% efficiency at 230VAC between 20 and 100% load. This not only results in low heat generation but also reduces its own CO2 footprint.

PLATIMAX D.F. helps systems to meet the EU eco-design directive 2013 ErP Lot 6 and 2014 ErP Lot 3 (< 0.5W in standby mode*) due to a high-efficient 5V standby (+5Vsb) circuitry. Moreover, it supports EU regulation no. 617/2013 demanding amongst others 85% efficiency at 50% load and 82% at 20% and 100% load.

* only in combination with an ErP ready mainboard


The DC-to-DC design generates the secondary voltages (+5V and +3.3V) from the primary voltage rail (+12V). The positive effect is higher efficiency, clean output voltages (low ripple noise), and perfect voltage regulation at all loads.

Four 6+2P (8P) PCI-E connectors and a massive 12V rail ensure power for multi-GPU systems (MGPU & SLI™) and overclocked processors.


SLEEMAX™ cables are individually sleeved, which gives them a high-end look. In addition, they are flatter and more flexible than conventionally sleeved cables and can therefore be laid better behind the cladding.

The fully modular cable management allows an easy system installation and cable routing and improves the air circulation inside the case.

Extended 70cm CPU connector cable for installation in large cases.


The integrated 13.9cm Enermax fan with patented Twister Bearing™ technology ensures an efficient and continuously silent cooling and long lifetime with up to 160,000 hours MTBF.

The patented technology DFR™ (Dust Free Rotation) reduces the dust accumulation on the fan blades.
After starting the PSU, the fan spins in reverse at full speed for a few seconds removing dust.
Afterwards, it returns to normal operation.


Intel® ATX12V v2.4, compliant with the Intel Power Supply Design Guide for Desktop Platform Form Factors Revision 1.31 April 2013.

Full support of the C6/C7 energy-saving functions of Intel® processors, first introduced with the Haswell™ generation.

Worldwide compatibility with automatic 100-240VAC input and up to 0.99 with active Power Factor Correction (PFC).

Quality & Safety

5 Years Manufacturer Warranty.

Enermax only uses high-quality components including first-class Japanese 105°C electrolytic capacitors for maximum stability and durability.

Enermax SafeGuard, the multiple protection circuit that keeps the power supply and the system safe from damage by short circuit (SCP), over voltage (OVP), under voltage (UVP), over current (OCP 3,3V/5V), over power (OPP) as well as surges and inrush current (SIP).

Non-Stop 24/7 industrial class performance. Full rated power output at 40°C ambient temperature.


By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

Technical Specifications

PSU Design Single rail, DC-to-DC, fully modular
PSU Length 160mm
Intel® ATX12V 2.4
Non-Stop 24/7 40°C
Powder Coating
2010 ErP Lot 6
2013 ErP Lot 6
2014 ErP Lot 3
EU regulation no. 617/2013
Intel C6/C7
Fan Size 139mm
Fan Technology DFR™, Twister Bearing™, 160.000h MTBF
Protections* SCP, OVP, UVP, OCP 3,3V/5V, OPP, SIP
Certifications CE, FCC, BSMI, CCC, C-Tick
Included in the delivery PSU, AC cord, SLEEMAX™ cables, cable bag, 4 screws, cable ties, cord organizer set, user manual

*SCP: short circuit protection, OVP: over voltage protection, UVP: under voltage protection, OCP: over current protection, OPP: over power protection, SIP: surges and inrush current protection.

Power Distribution
AC Input Voltage 100-240VAC, 47-63Hz
AC Input Current 10A 10A
DC Output
+3.3V 16A 103W 16A 103W
+5V 15A 15A
+12V1 41A 492W 50A 600W
-12V 0.3A 3.6W 0.3A 3.6W
5Vsb 2.5A 12.5W 2.5A 12.5W
Peak Power 550W* 660W*
Total Power 500W 600W

*Peak power may last up to 60 seconds.

Cables & Connectors
Mainboard 24 Pin 1x
CPU 4+4 Pin 1x
PCI-E 6+2 Pin (8 Pin) 4x
[2x 55/75cm]
[2x 55/75cm]
[2x 45/ 60/ 75/ 90cm]
[2x 45/ 60/ 75/ 90cm]
4 Pin Molex 6x
[2x 45/ 55/ 65cm]
[2x 45/ 55/ 65cm]
FDD 1x


Efficiency & Noise Level
10% load @ 230V Efficiency 88% 90%
Noise Level 11.2dB(A) 11.2dB(A)
20% load @ 230V Efficiency 92% 93%
Noise Level 11.2dB(A) 11.2dB(A)
50% load @ 230V Efficiency 94% 94%
Noise Level 11.2dB(A) 11.2dB(A)
100% load @ 230V Efficiency 92% 92%
PF 0.98 0.97
Noise Level 13.5dB(A) 13.9dB(A)

Dealer Information
Product Dimensions 160x 150 x 86mm 160x 150 x 86mm
Product Weight 1.8kg 1.8kg
Product Box – Dimensions 360 x 200 x 152mm 360 x 200 x 152mm
Product Box – Gross Weight 2.8kg 2.8kg
Master Carton – Dimensions 655 x 380 x 220mm 655 x 380 x 220mm
Master Carton – Gross Weight 14kg 14kg
Pieces / Master Carton 5  5
EAN-Code 4713157722294 4713157722300
